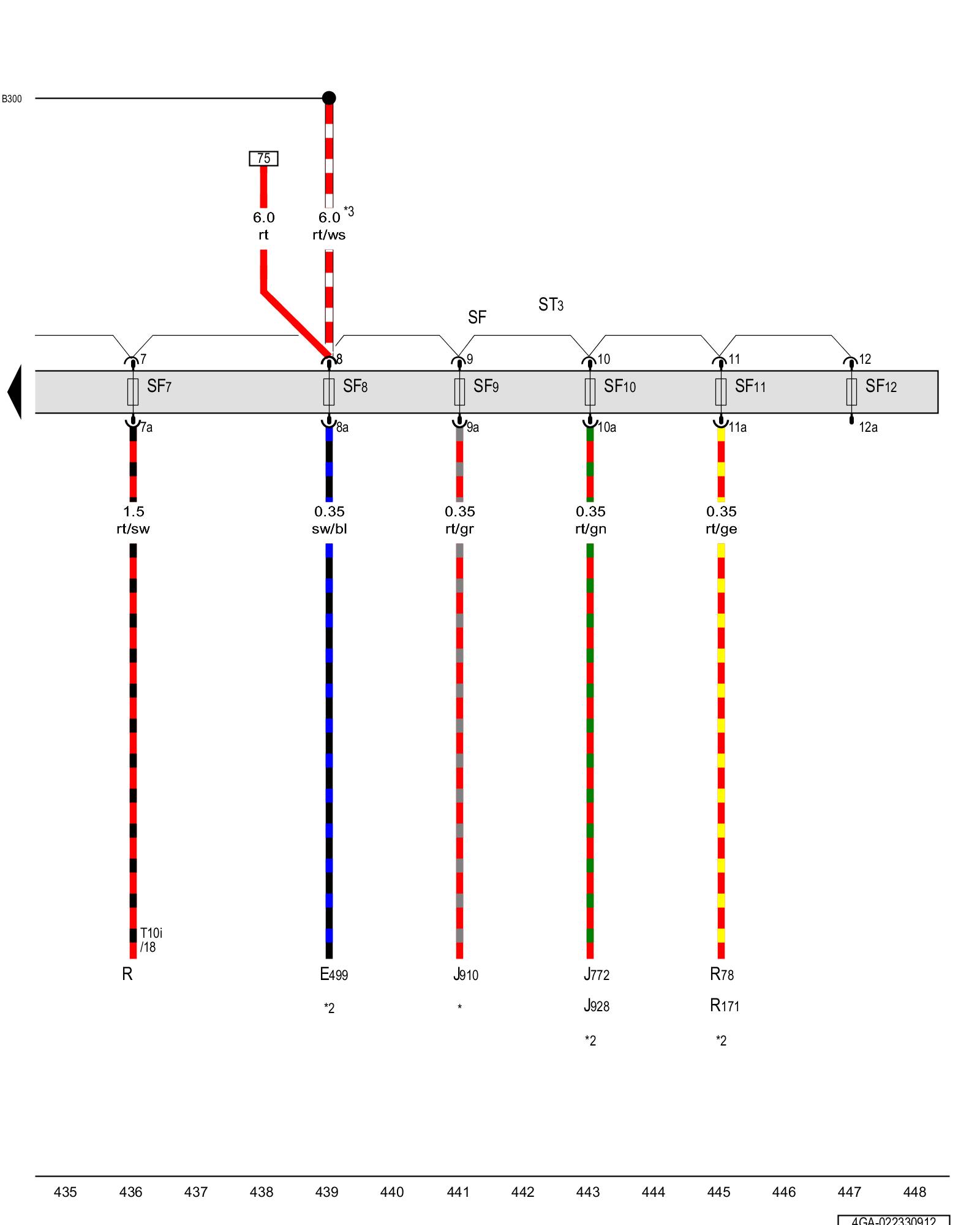

Diagram 22/33 (Tracks 435-448)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel F, Fuse panel 3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E499 - Multimedia control head 2

J772 - Rearview camera system control module Rear View Camera Overview

J910 - Automatic dimming interior rearview mirror relay Locations

J928 - Peripheral camera control module

R - Radio

R78 - TV tuner

R171 - Digital TV tuner

SF - Fuse panel F, on the relay and fuse carrier in the luggage compartment, right Overview Of Fuses

ST3 - Fuse panel 3, brown

SF7 - Fuse 7 (on fuse panel F) Overview Of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview Of Fuses

SF9 - Fuse 9 (on fuse panel F) Overview Of Fuses

SF10 - Fuse 10 (on fuse panel F) Overview Of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

SF12 - Fuse 12 (on fuse panel F) Overview Of Fuses

T10i - 10-pin connector

(B300) - Positive connection 4 (30) (in main wiring harness)

* - Refer to applicable standard equipment wiring diagram

*2 - Depending on equipment

*3 - Only for vehicles with Start/Stop system
