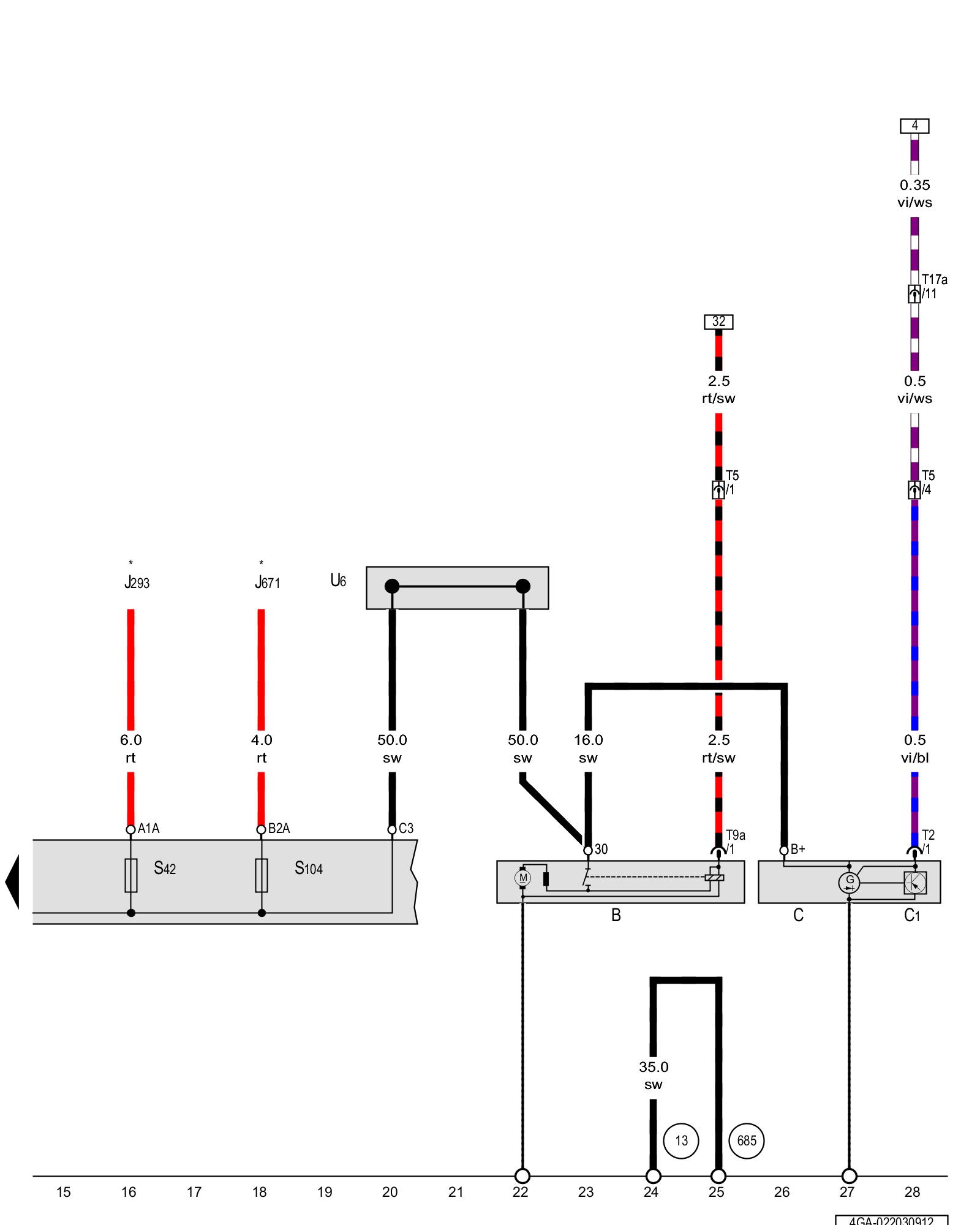

Diagram 22/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Starter, Generator, Battery jump start terminal





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

C - Generator

C1 - Voltage regulator

J293 - Coolant fan control module Locations Locations

J671 - Coolant fan control module 2 Locations Locations

S42 - Coolant fan fuse Terminal 30 Wire Junction -TV2-

S104 - Coolant fan second speed fuse Terminal 30 Wire Junction -TV2-

T2 - Double connector

T5 - 5-pin connector, in the center plenum chamber

T9a - 9-pin connector Locations

T17a - 17-pin connector, Left plenum chamber E-box connector station Locations

U6 - Battery jump start terminal

(13) - Ground connection in engine compartment, right [1][2]Ground Locations

(685) - Ground connection 1 on right front longitudinal member [1][2]Ground Locations

* - Refer to applicable engine wiring diagram
