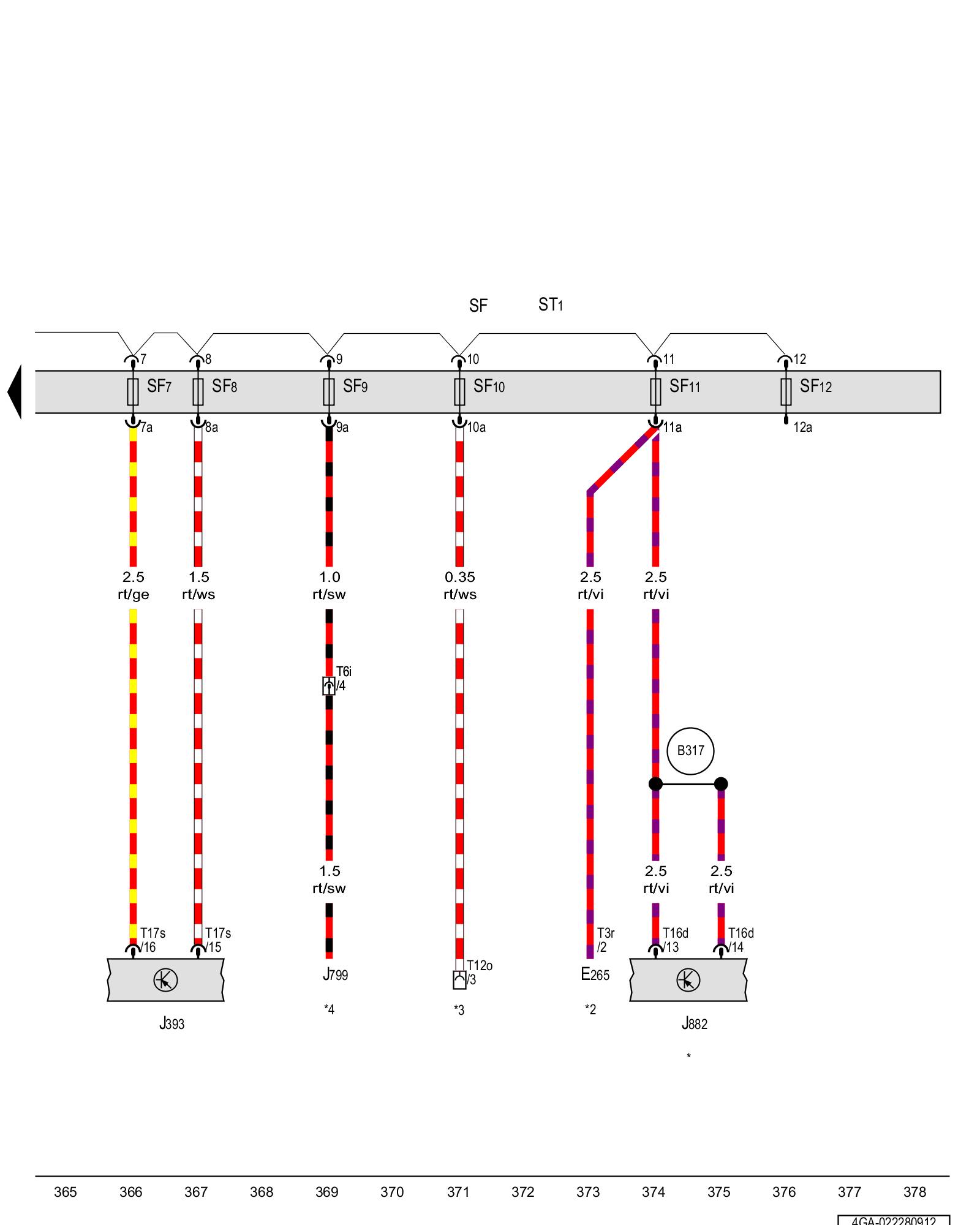

Diagram 22/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel F, Fuse panel 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E265 - Rear A/C display control head Locations A/C System Control Components In-Cabin

J393 - Comfort system central control module Locations

J799 - Right front seat ventilation control module

J882 - Seat heating control module

SF - Fuse panel F, on the relay and fuse carrier in the luggage compartment, right Overview Of Fuses

ST1 - Fuse panel 1, black

SF7 - Fuse 7 (on fuse panel F) Overview Of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview Of Fuses

SF9 - Fuse 9 (on fuse panel F) Overview Of Fuses

SF10 - Fuse 10 (on fuse panel F) Overview Of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

SF12 - Fuse 12 (on fuse panel F) Overview Of Fuses

T3r - 3-pin connector Rear A/C Display Control Head -E265-

T6i - 6-pin connector, in the coupling point for the right front seat Locations

T12o - 12-pin connector, in the luggage compartment, right

T16d - 16-pin connector

T17s - 17-pin connector Locations

(B317) - Positive connection 3 (30a) (in main wiring harness)

* - Automatic climate control, Basic Climatronic

*2 - Automatic climate control, Comfort Climatronic

*3 - Only for vehicles with special functions interface

*4 - Only for vehicles with seat ventilation

Previous Diagram 22/27 (Tracks 351-364)

Next Diagram 22/29 (Tracks 379-392)
