Diagram 22/27 (Tracks 351-364)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

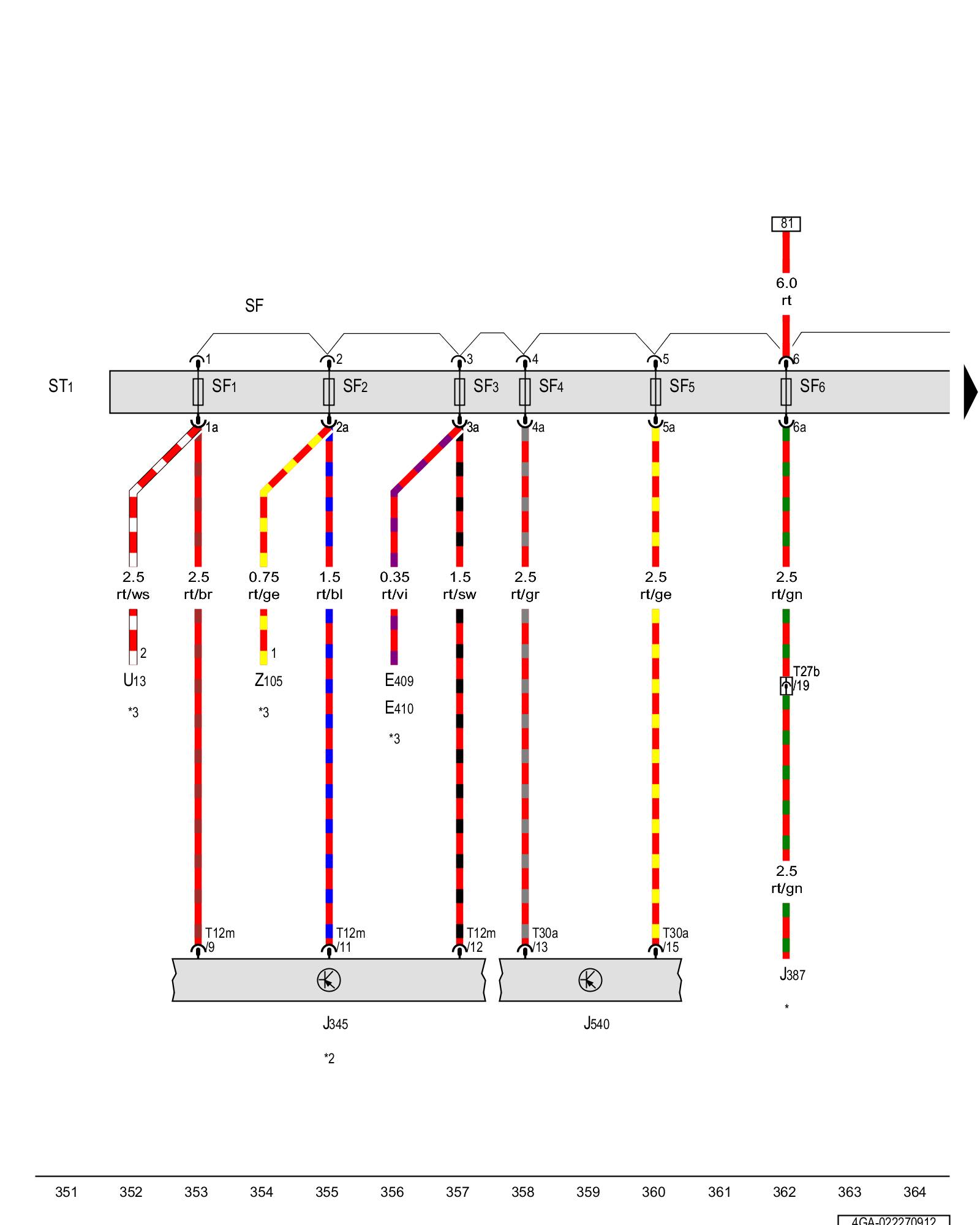

Fuse panel F, Fuse panel 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E409 - Left rear seat massage button

E410 - Right rear seat massage button

J345 - Towing recognition control module Locations

J387 - Front passenger door control module Locations

J540 - Electromechanical parking brake control module Locations Electromechanical Parking Brake - Overview

SF - Fuse panel F, on the relay and fuse carrier in the luggage compartment, right Overview Of Fuses

SF1 - Fuse 1 (on fuse panel F) Overview Of Fuses

ST1 - Fuse panel 1, black

SF2 - Fuse 2 (on fuse panel F) Overview Of Fuses

SF3 - Fuse 3 (on fuse panel F) Overview Of Fuses

SF4 - Fuse 4 (on fuse panel F) Overview Of Fuses

SF5 - Fuse 5 (on fuse panel F) Overview Of Fuses

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses

T12m - 12-pin connector Locations

T27b - 27-pin connector, on the right A-pillar

T30a - 30-pin connector Locations

U13 - Converter with socket, 12 V-230 V

Z105 - Cupholder with heating and cooling element

* - Refer to applicable convenience system wiring diagram

*2 - Only for vehicles with trailer socket

*3 - Only for vehicles with China equipment

Previous Diagram 22/26 (Tracks 337-350)

Next Diagram 22/28 (Tracks 365-378)
