Socket Illumination Bulb, 12 V Socket 2

Socket Illumination Bulb, 12 V Socket 2

Special tools, testers and auxiliary items required

• Release Tool (T40148)

Removal






- The release tabs - 2 - on the release tool (T40148) must engage in the openings in the 12V socket - 3 - - arrow - and the threaded pin - 1 - must slide down as far as the stop.

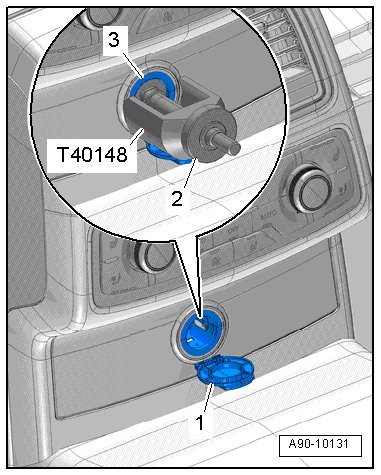

- Open the cover - 1 - on the 12 V socket and hold it in this position.






- Slide the (T40148) as far as the stop into the 12V socket - 3 -.

- Rotate the thumb-wheel - 2 - on the (T40148) clockwise as far as the stop.

• The piston - 2 - is pulled upward and the release tabs - 1 - on the (T40148) spread - arrows -.






- Remove the 12V socket from the illumination ring with the Rear cigarette lighter illumination bulb (L32) using the (T40148).

- Open the clips - arrows -.






- Remove the 12 V socket and illumination ring - 1 - from the trim - 2 -.

- Guide the electric wire through the mount - arrow - and disconnect it.

Installation






Install in reverse order of removal, observing the following:

- Remove the support - 1 - on the (T40148).

- Slide the piston down and hold it in place.

- Rotate the thumb-wheel - 4 - on the (T40148) counterclockwise - arrow -. This loosens the release tabs - 2 - on the 12V socket- 3 - so the (T40148) can be removed.
