Socket Illumination Bulb, 12 V Socket

Socket Illumination Bulb, 12 V Socket

Special tools, testers and auxiliary items required

• Release Tool (T40148)

Removal






- Remove the storage compartment inside the center console.

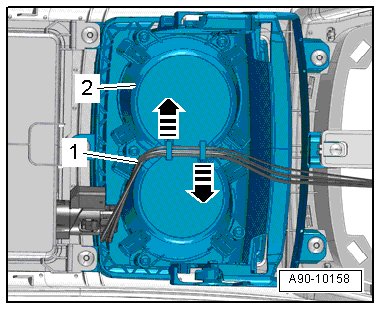

- Free up the electric wire - 1 - on the cupholder - 2 - - arrows -.

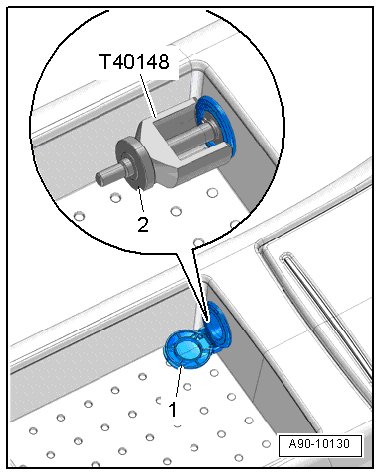

- The release tabs - 2 - on the release tool (T40148) must engage in the openings in the 12V socket - 3 - - arrow - and the threaded pin - 1 - must slide down as far as the stop.






- Open the cover - 1 - on the 12 V socket and hold it in this position.






- Slide the (T40148) all the way into the 12V socket.

- Rotate the thumb-wheel - 2 - on the (T40148) clockwise as far as the stop.

• The piston - 2 - is pulled upward and the release tabs - 1 - on the (T40148) spread - arrows -.






- Remove the 12V socket from the illumination ring with the Socket illumination (L42) using the (T40148).

- Disconnect the electrical connector.

- Open the clips - arrows -.






- Remove the illumination ring - 1 - with the Socket illumination bulb (L42) from the storage compartment - 2 - in the inside the center console.

Installation






Install in reverse order of removal, observing the following:

- Remove the support - 1 - on the (T40148).

- Slide the piston down and hold it in place.

- Rotate the thumb-wheel - 4 - on the (T40148) counterclockwise - arrow -. This loosens the release tabs - 2 - on the 12V socket- 3 - so the (T40148) can be removed.

- Install the storage compartment back into the center console.
