12 V Socket 3 From Trim Panel

12 V Socket 3 From Trim Panel

Special tools, testers and auxiliary items required

• Release Tool (T40148)

Removal






- Remove the luggage compartment side trim panel cover.

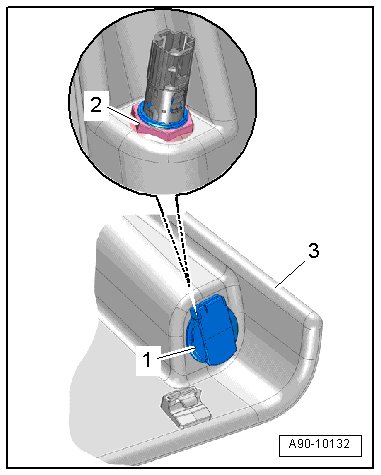

- Remove the nut - 2 -.

- Remove the 12 V socket - 1 - from the luggage compartment trim panel - 3 -.

Installation

• Tightening specification, refer to => [ Cigarette Lighter, 12 Volt Outlet, Overview ] Cigarette Lighter, 12 Volt Outlet, Overview.

Install in reverse order of removal, observing the following:

- Install the luggage compartment side trim panel cover.
