Center Console

Cigarette Lighter and Socket Mount

Removing






- Remove the center console rear cover. Refer to => [ Center Console Rear Cover ] Center Console Rear Cover.

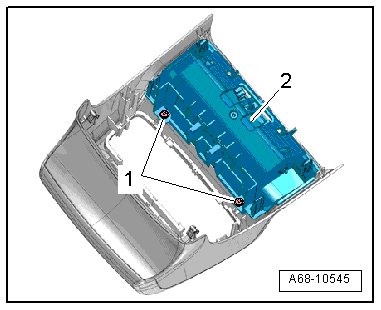

- Remove the bolts - 1 -.

- Remove the mount - 2 - for the cigarette lighter and socket from the center console rear cover.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
