Generator Overview

Generator Overview

Observe notes on contact corrosion, refer to => [ Contact Corrosion ] Contact Corrosion.

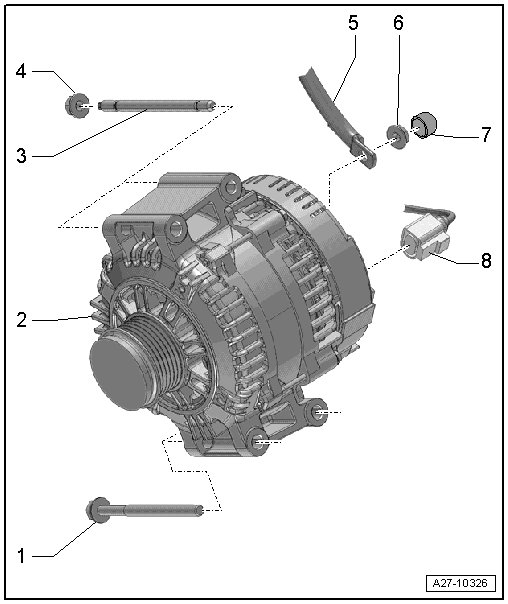

Generator mount with bolts, threaded pins and nuts






1 Screw

• 20 Nm

• Quantity 2

2 Generator

• Removing and installing, refer to => [ Generator ] Generator.

3 Threaded Pin

• 10 Nm

• Quantity 2

4 Nut

• 20 Nm

• Quantity 2

5 Terminal 30/B+

6 Nut

• 16 Nm

7 Cap

8 Electrical Connector
