Fastener Tightening Specifications

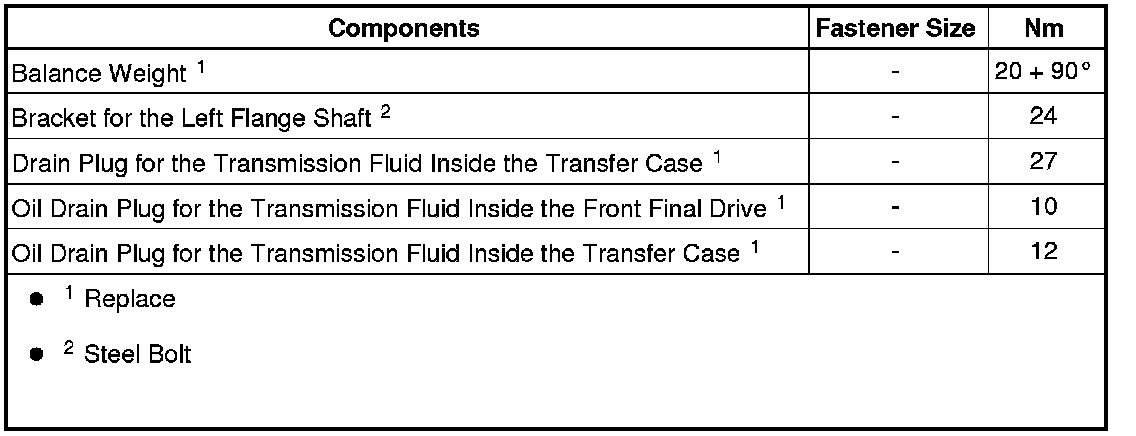

Fastener Tightening Specifications

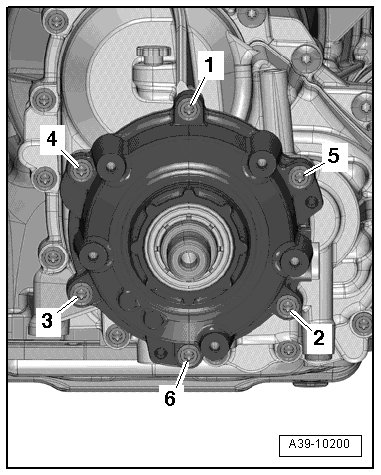

Center Differential Housing - Tightening Specification and Sequence






• Replace the bolts for the center differential housing.

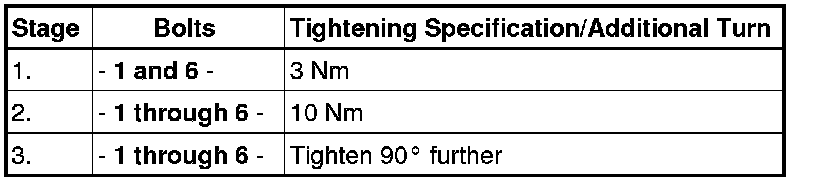

- Tighten the bolts in three steps in the sequence shown:






Front Final Drive Cover - Tightening Specifications and Sequence

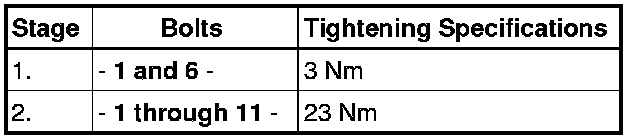

- Tighten the bolts in two steps in the sequence shown:
