Service Kit Assembly, With Front Passenger Seat Occupant Sensor G128 & Passenger Occupant Detection System Control Module J706

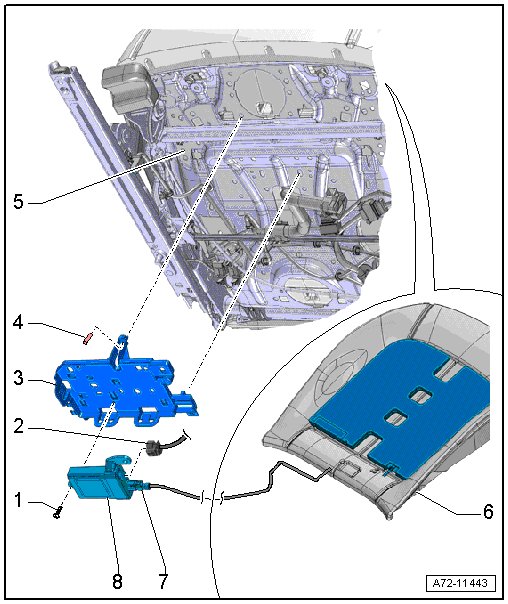

Service Kit Assembly Overview, with Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706






1 Bolt

• 1.5 Nm

2 Connector

• Between the connector station under the seat and the passenger occupant detection system control module (J706)

3 Bracket

• For the control module

• Engaged and clipped in the seat pan

• Removing and Installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module Bracket J136/J521 ] Memory Seat/Steering Column Adjustment Control Module Bracket J136/J521

4 Pin

• for securing the bracket to the seat pan

5 Front seat

6 Front passenger seat occupied sensor (G128)

• Never disconnect the connector between the front passenger seat occupant sensor (G128) and the passenger occupant detection system control module (J706).

• Never disconnect the passenger occupant detection sensor from the seat cushion or the seat cover.

• Different versions:

• Standard seat/Sport seat/Super Sport seat: the passenger occupant detection sensor is glued to seat cushion and seat heating element

• Multicontour seat: the multicontour seat and seat heating element are sewn inside the seat cover

• Removing and Installing, refer to => [ Service Kit with Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706 ] Service Kit With Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706

7 Connector

• Between the front passenger seat occupant sensor (G128) and passenger occupant detection system control module (J706)

Never disconnect the connector between the front passenger seat occupant sensor (G128) and the passenger occupant detection system control module (J706).

8 Seat Occupied Recognition Control Module (J706)

• clipped with the bracket

Never disconnect the connector between the front passenger seat occupant sensor (G128) and the passenger occupant detection system control module (J706).

• Removing and Installing, refer to => [ Service Kit with Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706 ] Service Kit With Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706
