Headlamp Switch: Service and Repair

Light Switch (E1)

Removing






- Turn the headlamp switch to "0".

- Remove the side cover from the instrument panel.

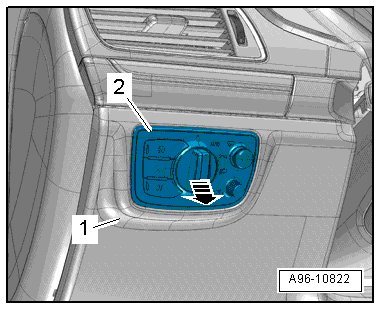

- Reach through the opening between the instrument panel and fuse panel C and push the headlamp switch - 2 - out of the instrument panel cover - 1 - on the driver side - arrow -.

- Disconnect the electrical connector.

Installing

Install in reverse order of removal. Note the following:

- Push the switch into the switch housing until it clicks into place.

- Install the side cover into the instrument panel.
