Hazard Warning Switch: Service and Repair

Emergency Flasher Button (E229)

Removing






- Remove the instrument vent in the center.

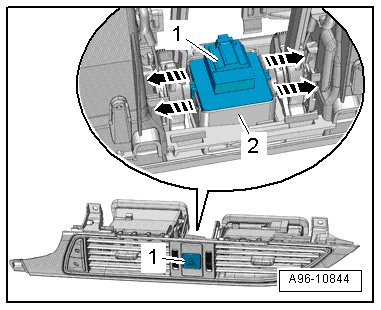

- Release the retaining straps - arrows -.

- Remove the emergency flasher button - 1 - toward the rear out of the mount - 2 -.

Installing

Install in reverse order of removal. Note the following:

- Install the emergency flasher button until it clicks into place.

- Install the center instrument vent.
