Outside Temperature Display Sensor: Service and Repair

Outside Air Temperature Sensor Bracket

Removing






- Remove the front bumper cover. Refer to => [ Front Bumper Cover ] Front Bumper Cover.

- Remove the outside air temperature sensor (G17).

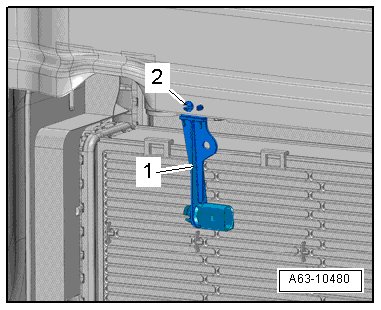

- Remove the expanding pin - 2 - and the bracket - 1 -.

Installing

Installation is reverse of removal, but note the following:

- Install the outside air temperature sensor (G17).

- Install the front bumper cover. Refer to => [ Front Bumper Cover ] Front Bumper Cover.
