Center Console

Rear Heated Seat Regulating Switches E128/E129

Left rear heated seat regulating switch (E128) / right rear heated seat regulating switch (E129)

Special tools, testers and auxiliary items required

• Wedges (T10383)

Removing

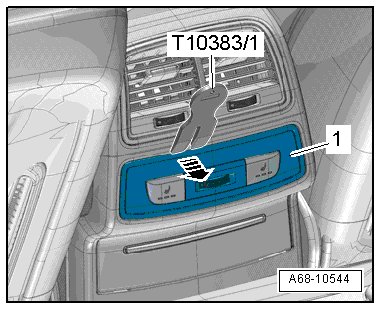

- Unclip the cover - 1 - from the center console using a wedge (T10383/1) - arrow - and remove the switch.

- Disconnect the connector from the left rear heated seat regulating switch / right rear heated seat regulating switch (E128) / (E129).

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Center Console Assembly Overview ] Front Center Console Assembly Overview.
