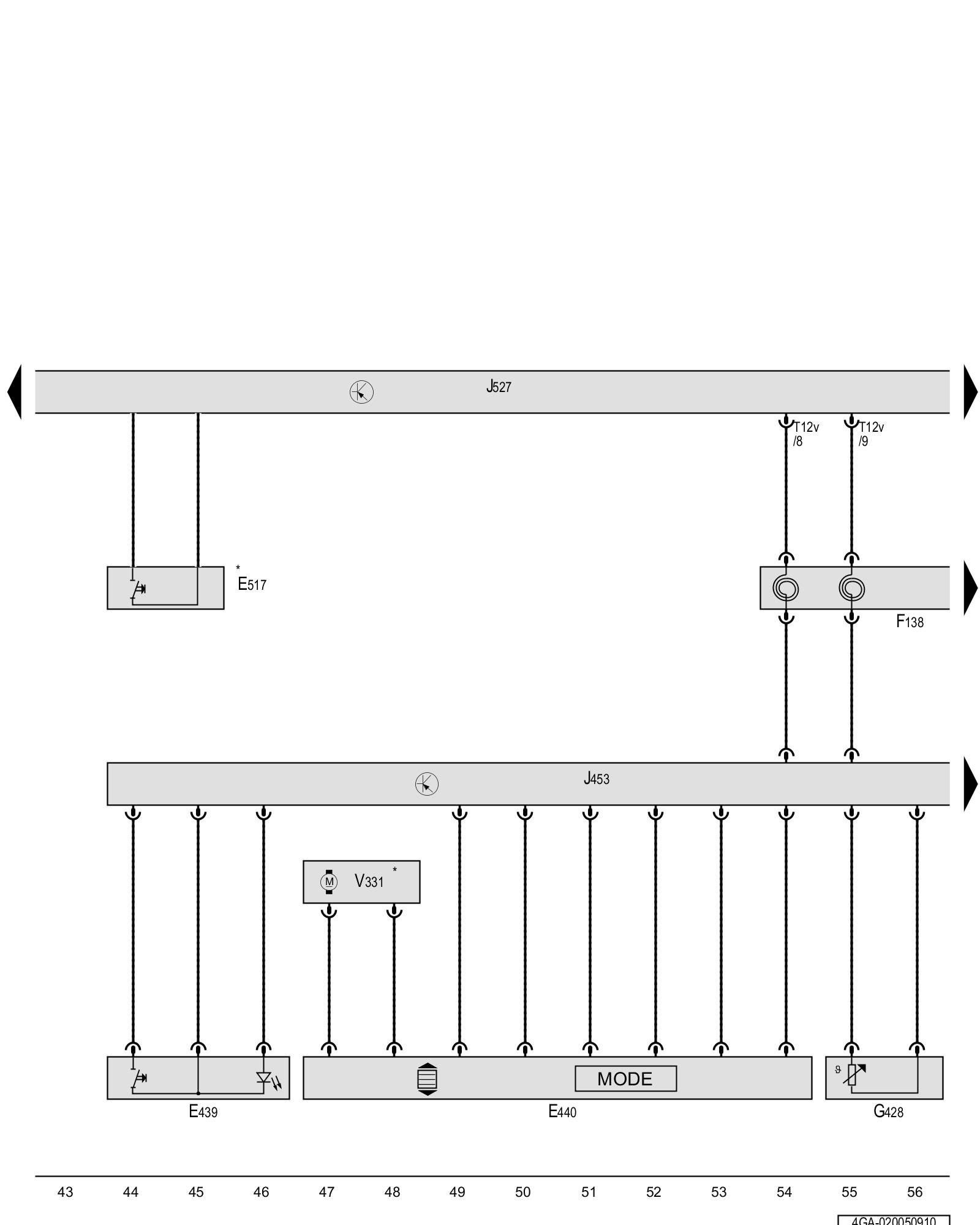

Diagram 20/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


tiptronic downshift button on steering wheel, Directional stabilization assistance button, Steering column electronics control module, Steering wheel vibration motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E439 - tiptronic downshift button on steering wheel

E440 - Left multifunction buttons on steering wheel

E517 - Directional stabilization assistance button

F138 - Airbag spiral spring/return spring with slip ring Locations

G428 - Heated steering wheel sensor

J453 - Multifunction steering wheel control module

J527 - Steering column electronics control module Locations

T12v - 12-pin connector Steering Column Electronic Systems Control Module -J527-

V331 - Steering wheel vibration motor

* - Only for vehicles with lane assist
