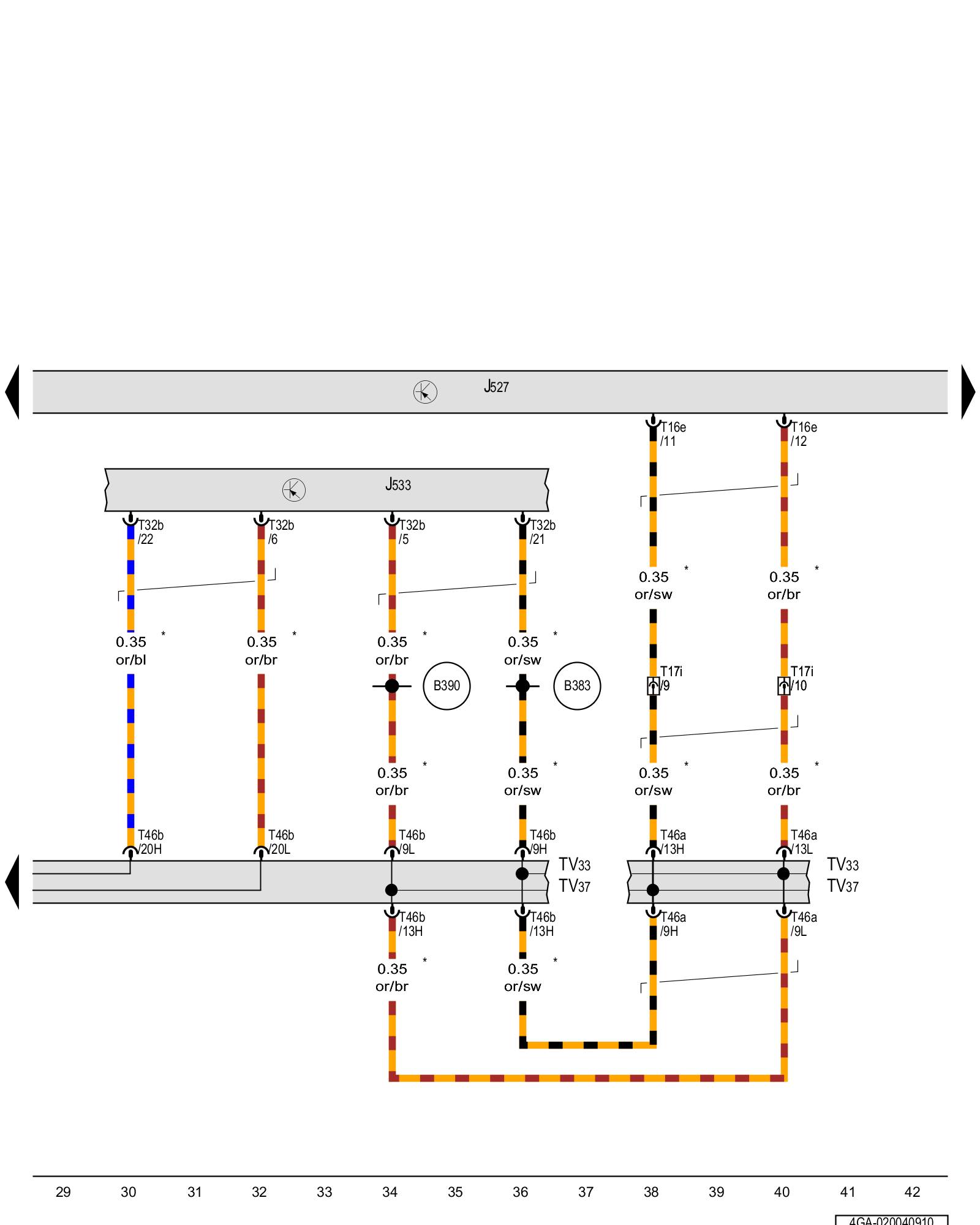

Diagram 20/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Steering column electronics control module, Powertrain CAN bus high wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J527 - Steering column electronics control module Locations

J533 - Data bus on board diagnostic interface Locations

T16e - 16-pin connector Steering Column Electronic Systems Control Module -J527-

T17i - 17-pin connector, in the left A-pillar connector station Locations

T32b - 32-pin connector Locations

T46a - 46-pin connector Locations

T46b - 46-pin connector

TV33 - Powertrain CAN bus high wire junction

TV37 - Powertrain CAN bus low wire junction

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - Data bus wire (CAN bus)
