Diagram 20/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

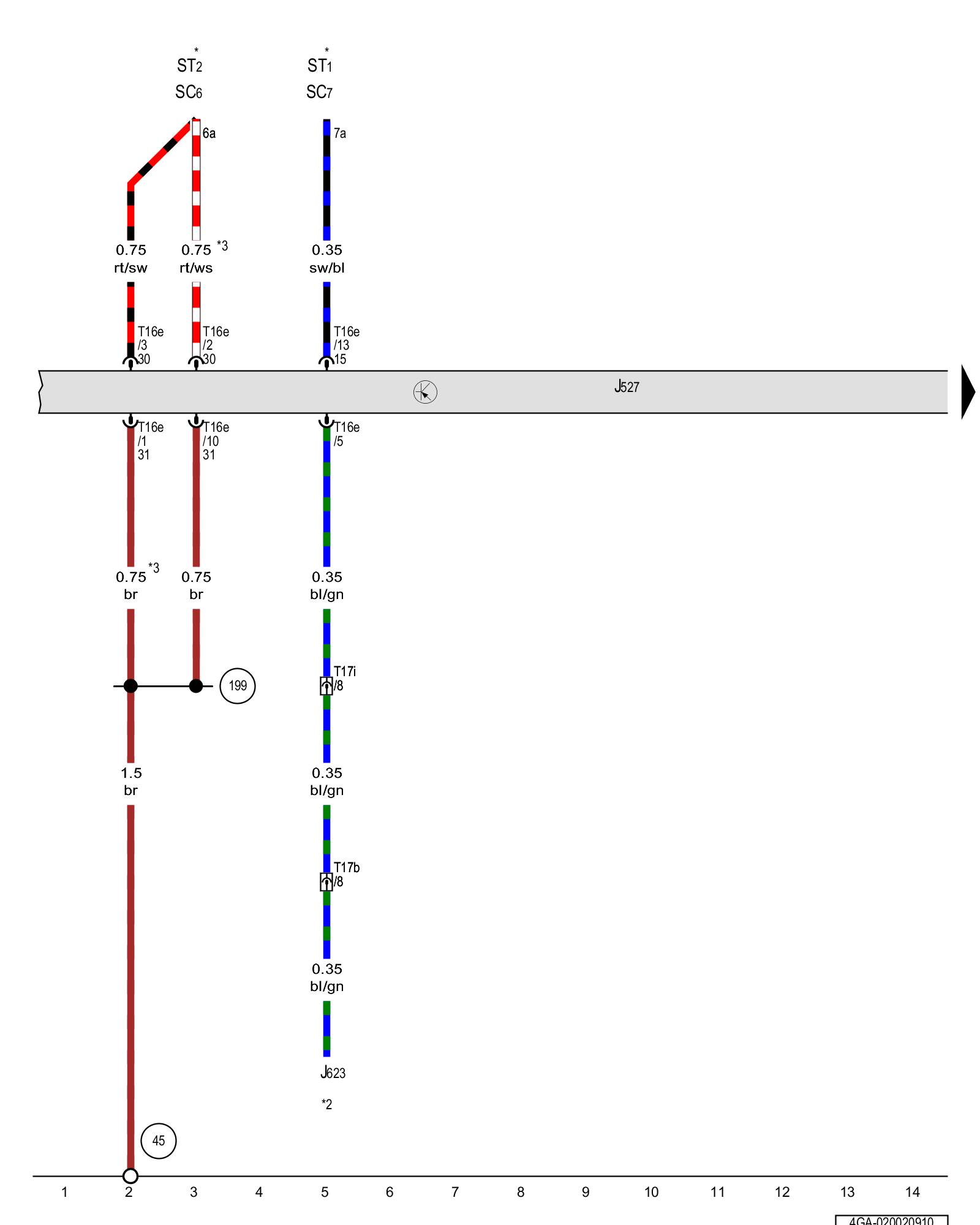

Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J527 - Steering column electronics control module Locations

J623 - Engine control module Locations

ST1 - Fuse panel 1

ST2 - Fuse panel 2

SC6 - Fuse 6 (on fuse panel C)

SC7 - Fuse 7 (on fuse panel C)

T16e - 16-pin connector Steering Column Electronic Systems Control Module -J527-

T17b - 17-pin connector, Left plenum chamber E-box connector station Locations

T17i - 17-pin connector, in the left A-pillar connector station Locations

(45) - Ground connection behind instrument panel, center [1][2]Ground Locations

(199) - Ground connection 3 (in instrument panel wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Refer to applicable engine wiring diagram

*3 - Only for vehicles with a heated steering wheel

Next Diagram 20/3 (Tracks 15-28)
