Collision Avoidance System Switch: Service and Repair

Lane Change Assistance Button (E530)

Removing






- Remove the inner cover.

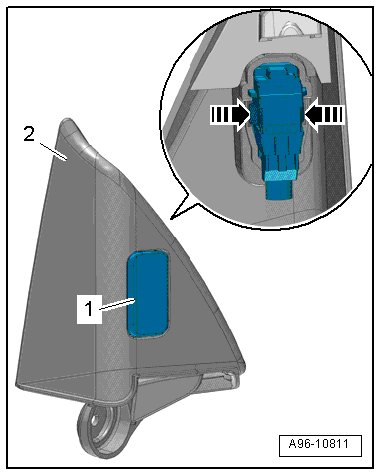

- Release the tabs - arrows - and remove the lane change assistance button - 1 - from the cover - 2 -.

Installing

Install in reverse order of removal. Note the following:

- Install the inner cover.
