Diagram 6/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

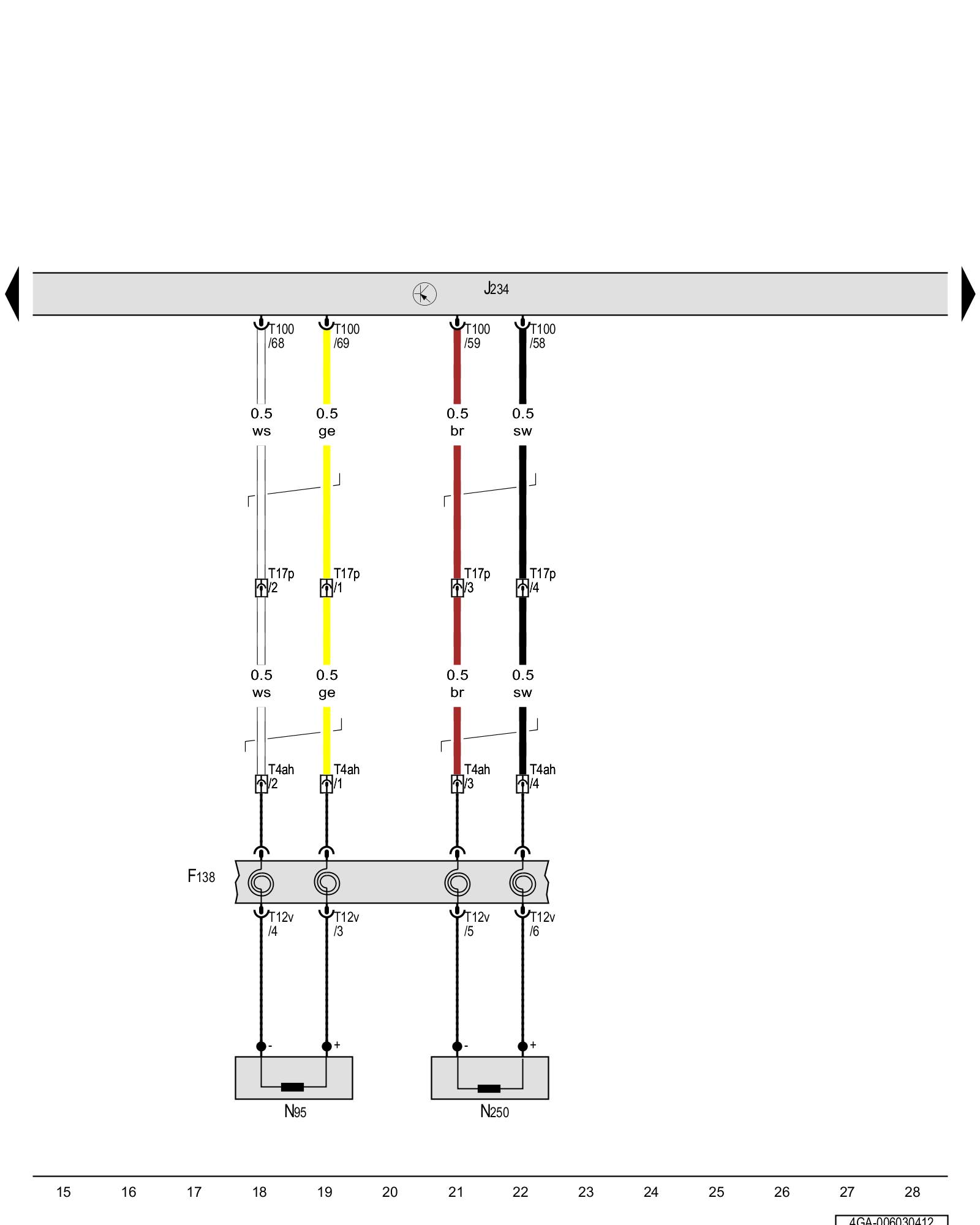

Airbag spiral spring/return spring with slip ring, Airbag control module, Driver airbag igniter, Driver airbag igniter 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F138 - Airbag spiral spring/return spring with slip ring Locations

J234 - Airbag control module Locations

N95 - Driver airbag igniter Locations

N250 - Driver airbag igniter 2 Locations

T4ah - 4-pin connector, on the steering wheel Steering Column Electronic Systems Control Module -J527-

T12v - 12-pin connector Steering Column Electronic Systems Control Module -J527-

T17p - 17-pin connector, in the connector station, right A-pillar Locations

T100 - 100-pin connector Locations

Previous Diagram 6/2 (Tracks 1-14)

Next Diagram 6/4 (Tracks 29-42)
