Suspension Control Module: Locations
Overview of Control Modules

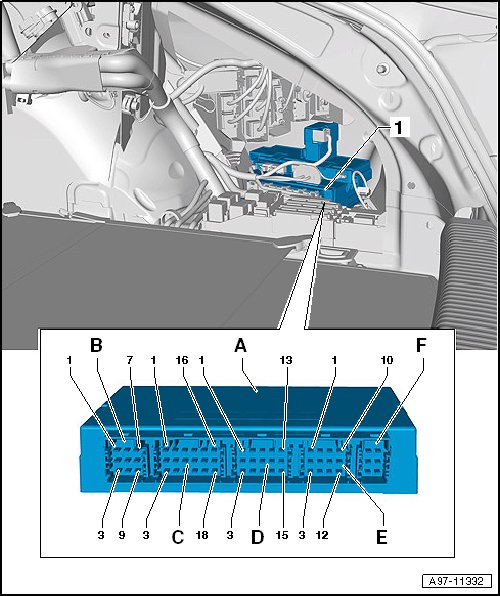

Level Control System Control Module -J197-
Component Location:
In right luggage compartment, behind side panel trim
A - Level Control System Control Module -J197-
B - 9-Pin Connector -T9a- , grey
C - 18-Pin Connector -T18a- , grey
D - 15-Pin Connector -T15a- , purple
E - 12-Pin Connector -T12r- , green
F - 6-Pin Connector -T6w- , blue
