Power Steering Control Module -J500-







Overview of Control Modules

Power Steering Control Module -J500-

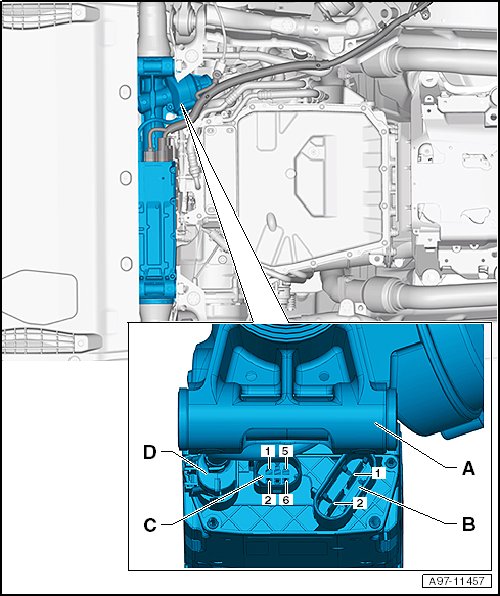

Component Location:
On steering box





A - Power Steering Control Module -J500-

B - Double Connector -T2fa- , black

C - 6-Pin Connector -T6ak- , black

D - Connector Sensor
