Active Steering Control Module -J792-







Overview of Control Modules

Active Steering Control Module -J792-

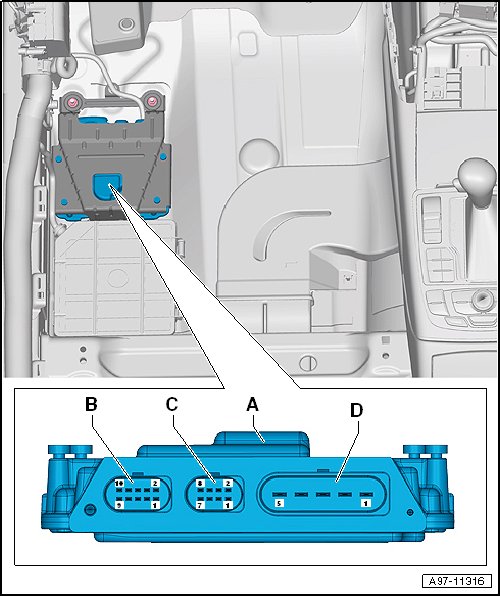

Component Location, left-hand
drive:
Below driver's seat





A - Active Steering Control Module -J792-

B - 10-Pin Connector -T10c- , black

C - 8-Pin Connector -T8m- , black

D - 5-Pin Connector -T5k- , black
