Power Adjustable Steering Column Control Module -J866-







Overview of Control Modules

Power Adjustable Steering Column Control Module -J866-

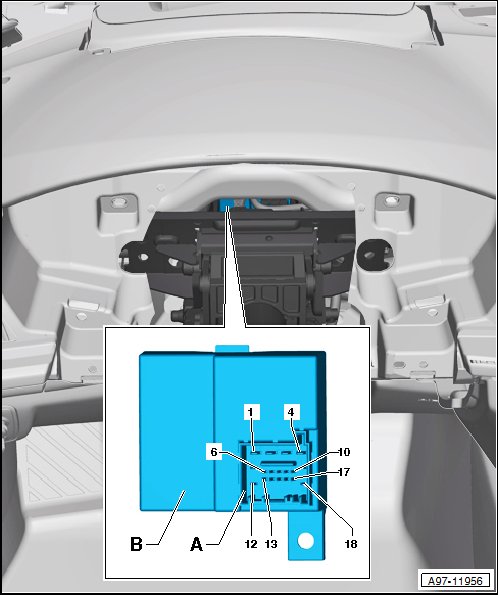

Component Location:
On steering column.





A - 18-Pin Connector -T18d- , black

B - Power Adjustable Steering Column Control Module -J866-
