Air Bag Control Module: Locations







Overview of Control Modules

Airbag Control Module -J234-

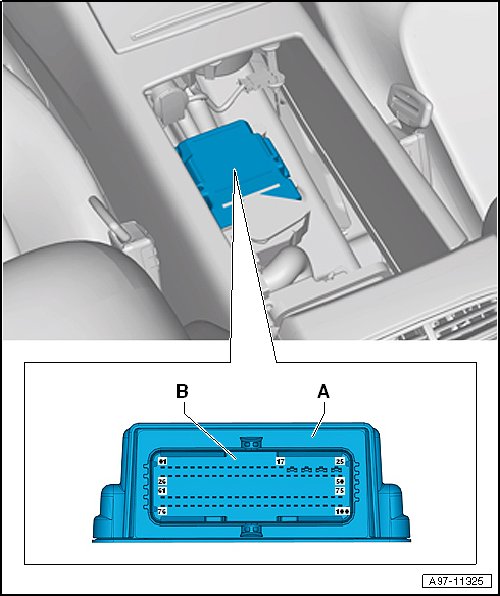

Component Location:
Below rear center console





A - Airbag Control Module -J234-

B - 100-Pin Connector -T100- , yellow
