Fuel Pump Control Unit: Locations

Overview of Control Modules

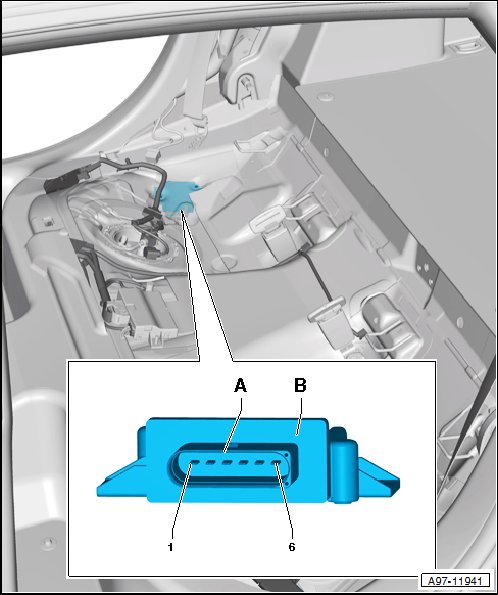

Fuel Pump (FP) Control Module -J538-

Component Location:
Below rear seat, right, on underbody

A - 6-Pin Connector -T6ar- , black

B - Fuel Pump (FP) Control Module -J538-
