Cornering Lamp and Headlamp Range Control Module

Cornering Lamp and Headlamp Range Control Module

- If the control module was replaced, select the "Replace" function for the respective control module in "Guided Fault Finding" or "Guided Functions" using the Vehicle Diagnostic Tester.

Removal






- Remove the driver side instrument panel cover.

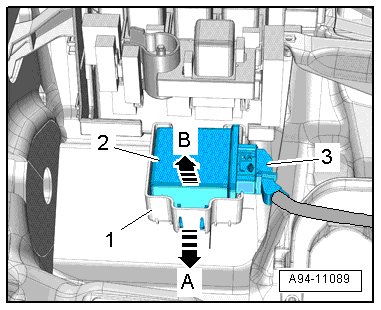

- Open the tab - arrow A - and remove the control module - 2 - from the mount - 1 - - arrow B -.

- Disconnect the electrical connector - 3 -.

- To disconnect electrical connector, press catch - 1 -, turn retaining bracket in - direction of arrow - and remove connector.






Installation

Install in reverse order of removal. Note the following:

- Install the driver side instrument panel cover.
