Instrument Panel Control Module: Locations

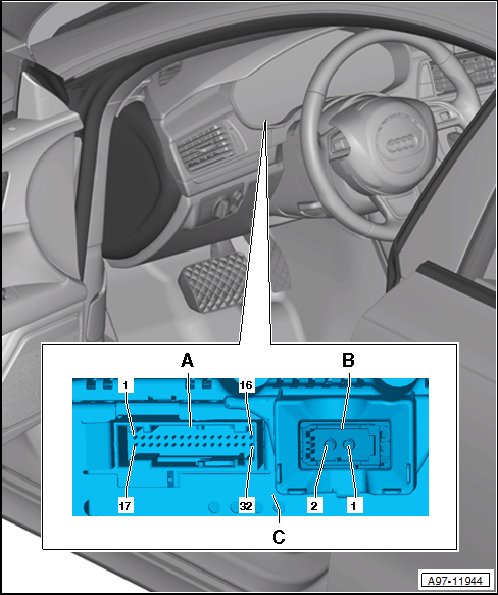

Overview of Control Modules

Instrument Cluster Control Module -J285-


Component Location:
In driver's instrument panel.





A - 32-Pin Connector -T32- , blue

B - Double Connector -T2bm- , black

C - Instrument Cluster Control Module -J285-
