Radiator Cooling Fan Control Module: Locations

Overview of Control Modules

Coolant Fan Control (FC) Control Module -J293- /Coolant Fan Control (FC) Control Module 2 -J671-

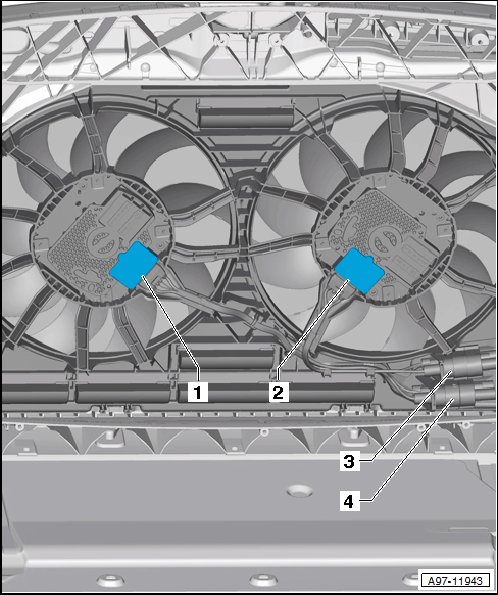

Component Location:
On Cooler, front.





1 Coolant Fan Control (FC) Control Module -J293-
• Coolant Fan -V7-
2 Coolant Fan Control (FC) Control Module 2 -J671-
• Coolant Fan 2 -V177-
3 4-Pin Connector -T4bg- , black
4 4-Pin Connector -T4bf- , black
