Sunroof / Moonroof Module: Locations







Overview of Control Modules

Power Sunroof Control Module -J245-

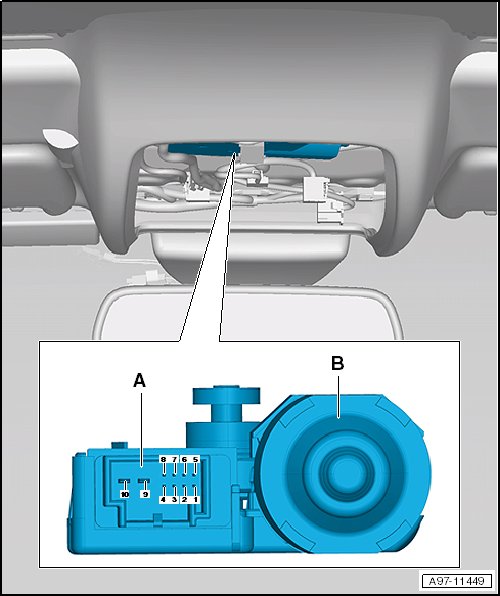

Component Location:
Behind the front interior light -W1-





A - 10-Pin Connector -T10b- , black

B - Power Sunroof Control Module -J245-
