Memory Seat/Steering Column Adjustment Control Module, Assembly Overview

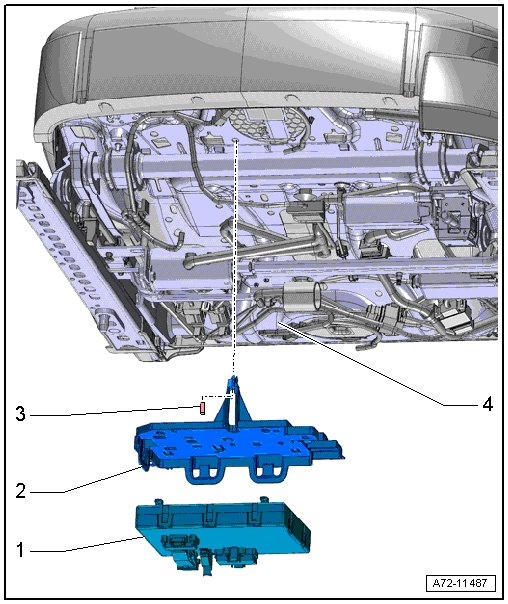

Memory Seat/Steering Column Adjustment Control Module, Assembly Overview






1 Memory seat/steering column adjustment control head (J136)

• If equipped seat ventilation: seat ventilation and left front seat heating integrated

• Front passenger side: passenger memory seat control module (J521)

• If equipped seat ventilation: seat ventilation and right front seat heating integrated

• clipped with the bracket

• Removing and Installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module J136/J521 ] Memory Seat/Steering Column Adjustment Control Module J136/J521

2 Bracket

• Engaged and clipped in the seat pan

• Removing and Installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module Bracket J136/J521 ] Memory Seat/Steering Column Adjustment Control Module Bracket J136/J521

3 Pin

• for securing the bracket to the seat pan

4 Front seat
