Front Passenger's Door Control Module -J387-

Overview of Control Modules

Front Passenger's Door Control Module -J387-


Component Location:
In front right door, left-hand drive.
In front left door, right-hand drive.

Note:

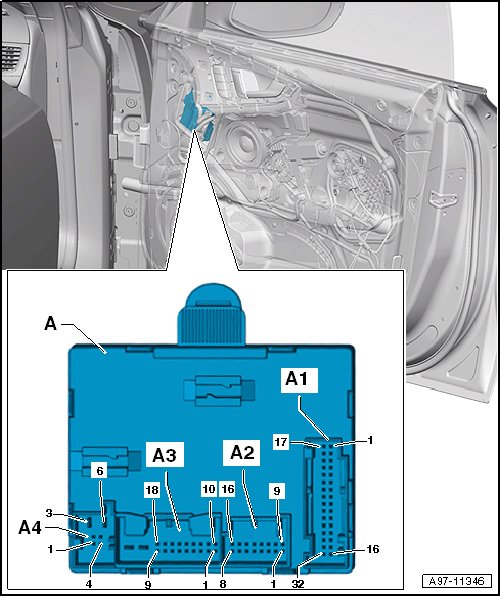

• Illustration shows left-hand drive






A - Front Passenger's Door Control Module -J387-

A1 - 32-Pin Connector -T32l- , blue

A2 - 16-Pin Connector -T16m- , black

A3 - 20-Pin Connector -T20f- , black

A4 - 6-Pin Connector -T6at- , black
