Parking Assist Control Module: Locations







Overview of Control Modules

Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-

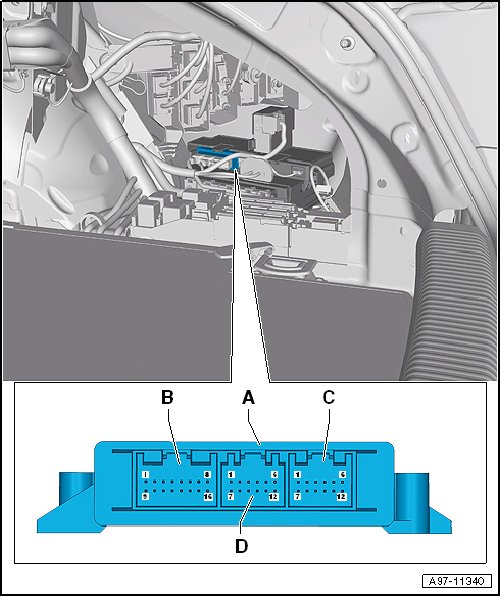

Component Location:
In right luggage compartment, behind side panel trim





A - Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-

B - 16-Pin Connector -T16i- , brown

C - 12-Pin Connector -T12w- , black

D - 12-Pin Connector -T12q- , brown
