Homelink(R) - Can't Program Garage Door Opener
96 Garage door opener cannot be programmed to Homelink - A8 (D4), A7, A696 12 28
2026599/3
February 2, 2012.

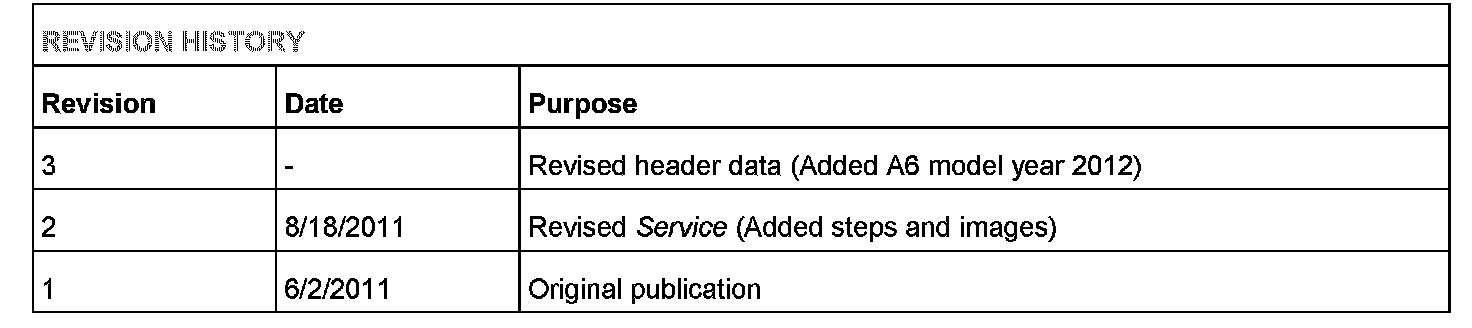

Supersedes Technical Service Bulletin Group 96 number 11 - 19 dated August 18, 2011 for reasons listed below.

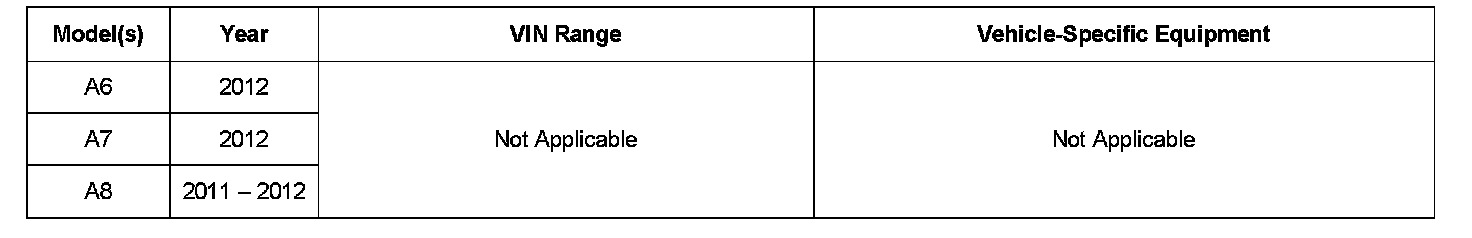

Affected Vehicles
Condition

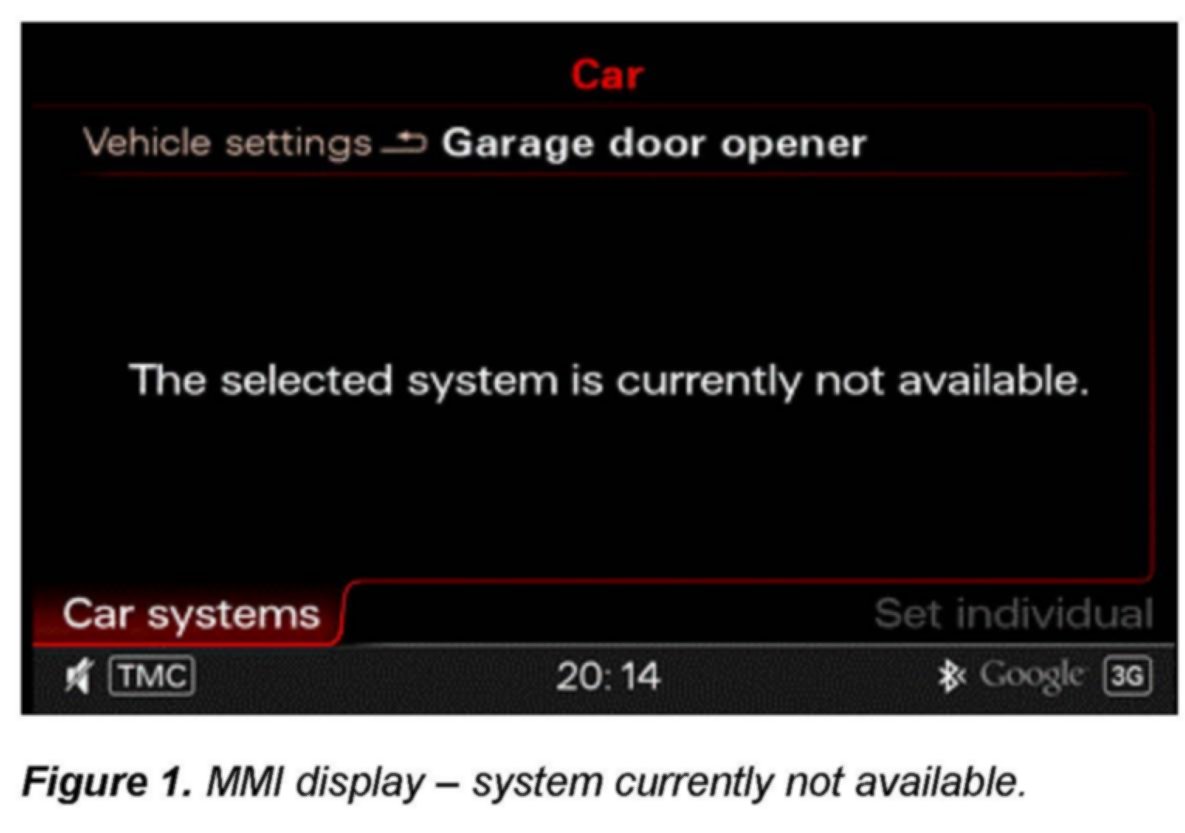

When programming a garage door opener to the Homelink system, a MMI screen display will pop up with a message stating the system is currently not available.
Technical Background
During vehicle production the comfort control module, J393, was either adapted with an incorrect country code, or adapted with the correct country code, but without the Homelink button assembly connected.
Production Solution
Correct adapting of the comfort control module, J393.
Service
Follow the steps below to correctly adapt the comfort control module, J393.

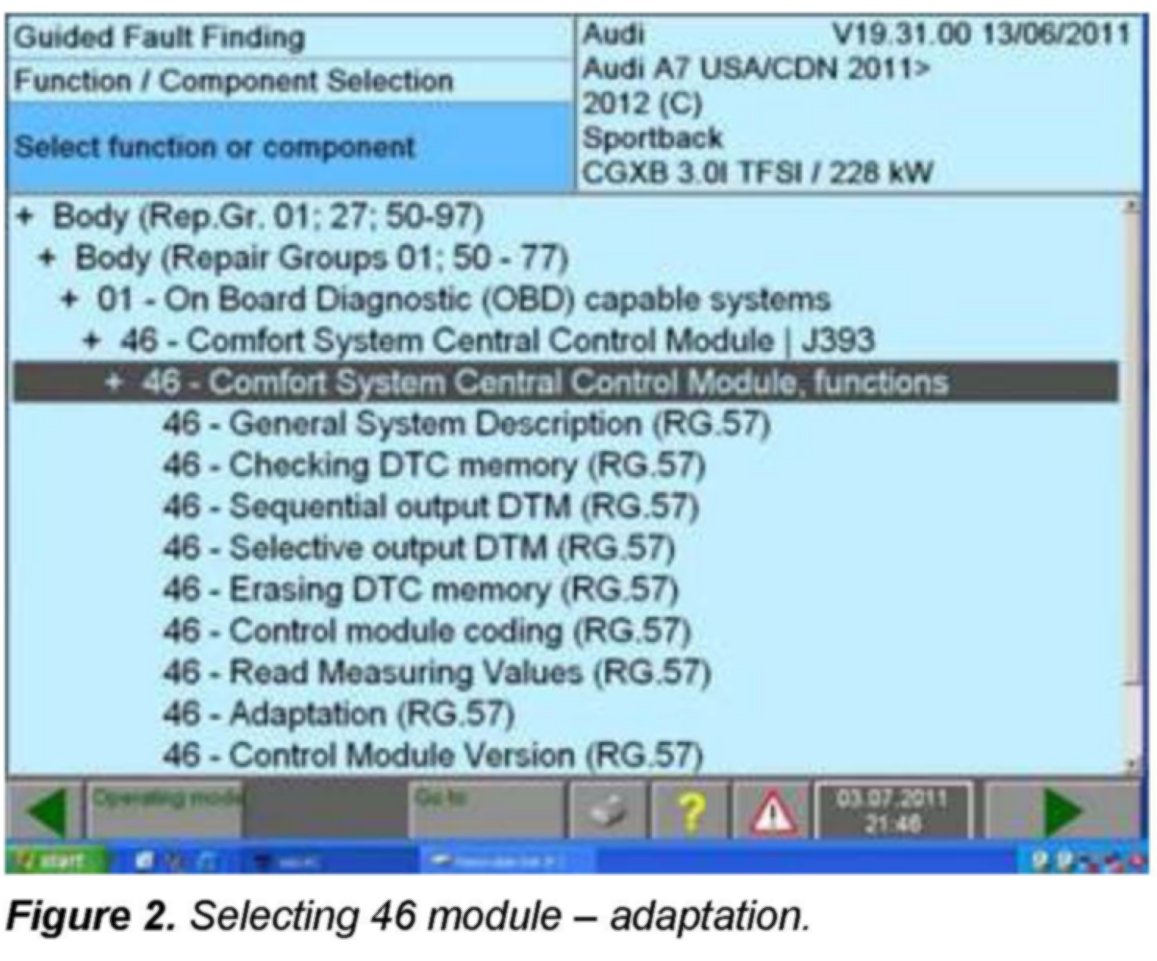

1. In Guided Fault Finding select: Function/Component Selection >> Body >> Body >> 01 OBD >> 46 Comfort System Central Control Unit J393 >> 46 Comfort System Central Control Module, functions >> Adaptation.

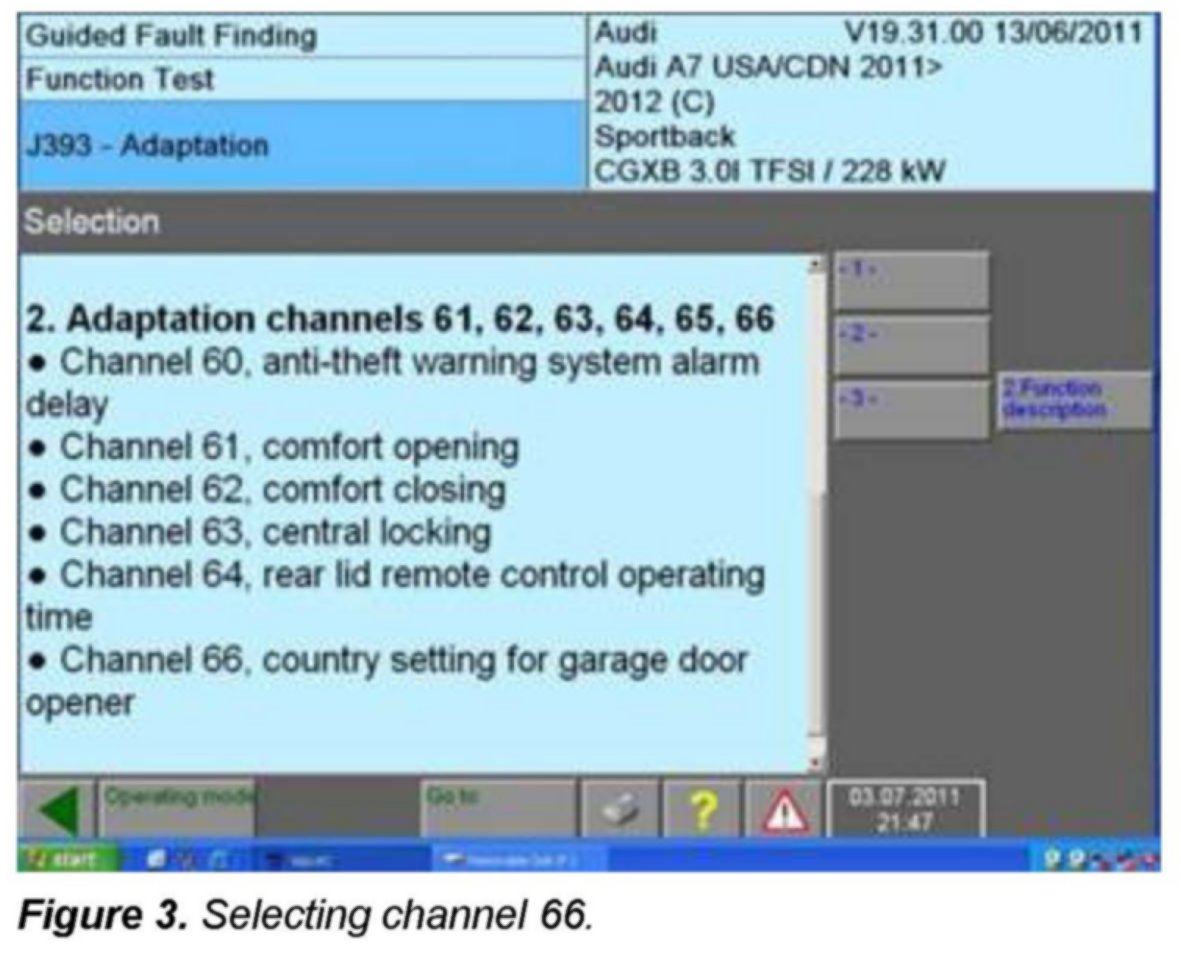

2. Select option 2 to enter adaptation channel 66.
3. Select option 6 to adapt channel 66.
4. a. If the GFF screen does not display North America (NAR) with MMI support, select Done and continue with adaptation procedure by following steps 5 thru 9.
Note:

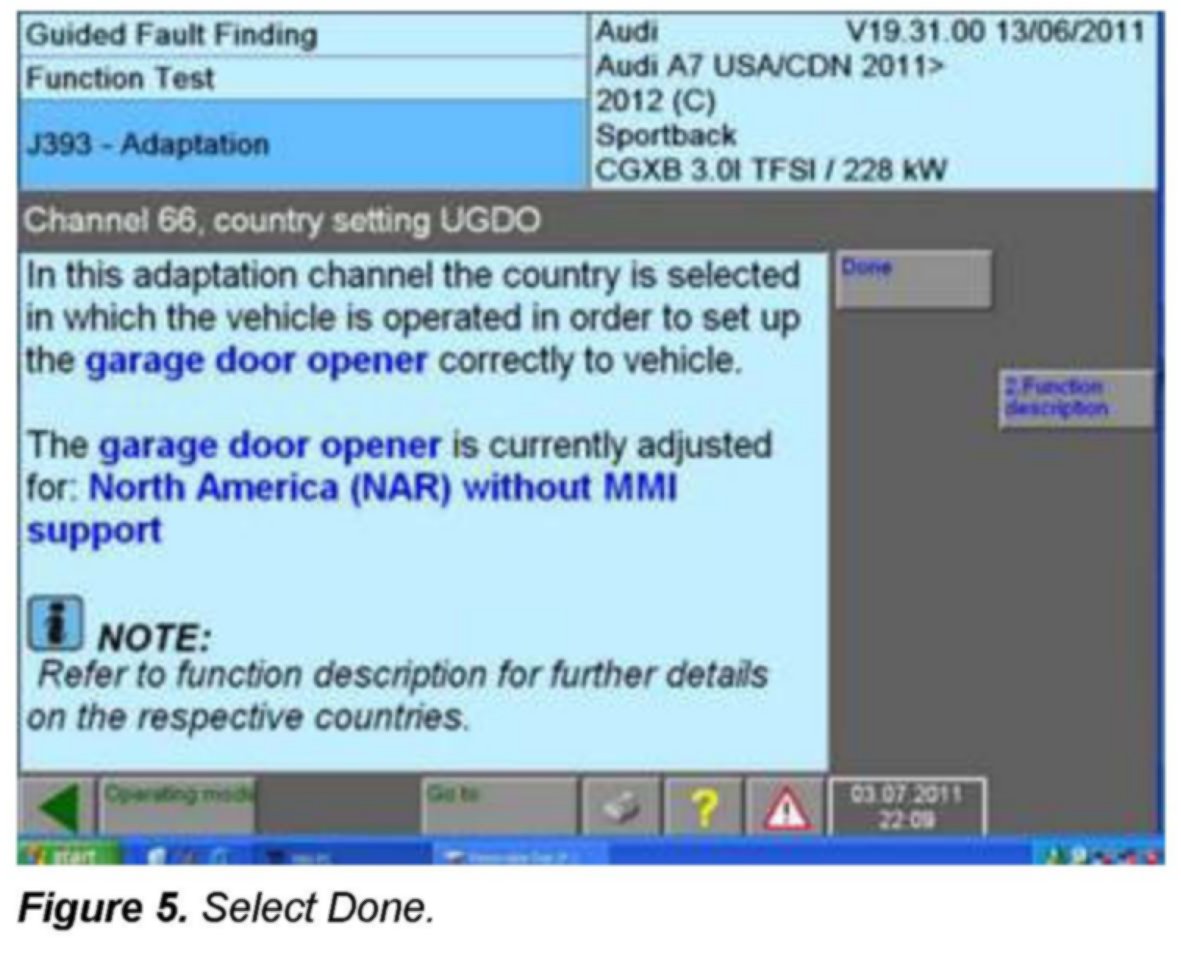

Figure 5 illustrates a vehicle adapted to North America without MMI support. Other countries with or without MMI support may be displayed in the vehicle that one is working on.

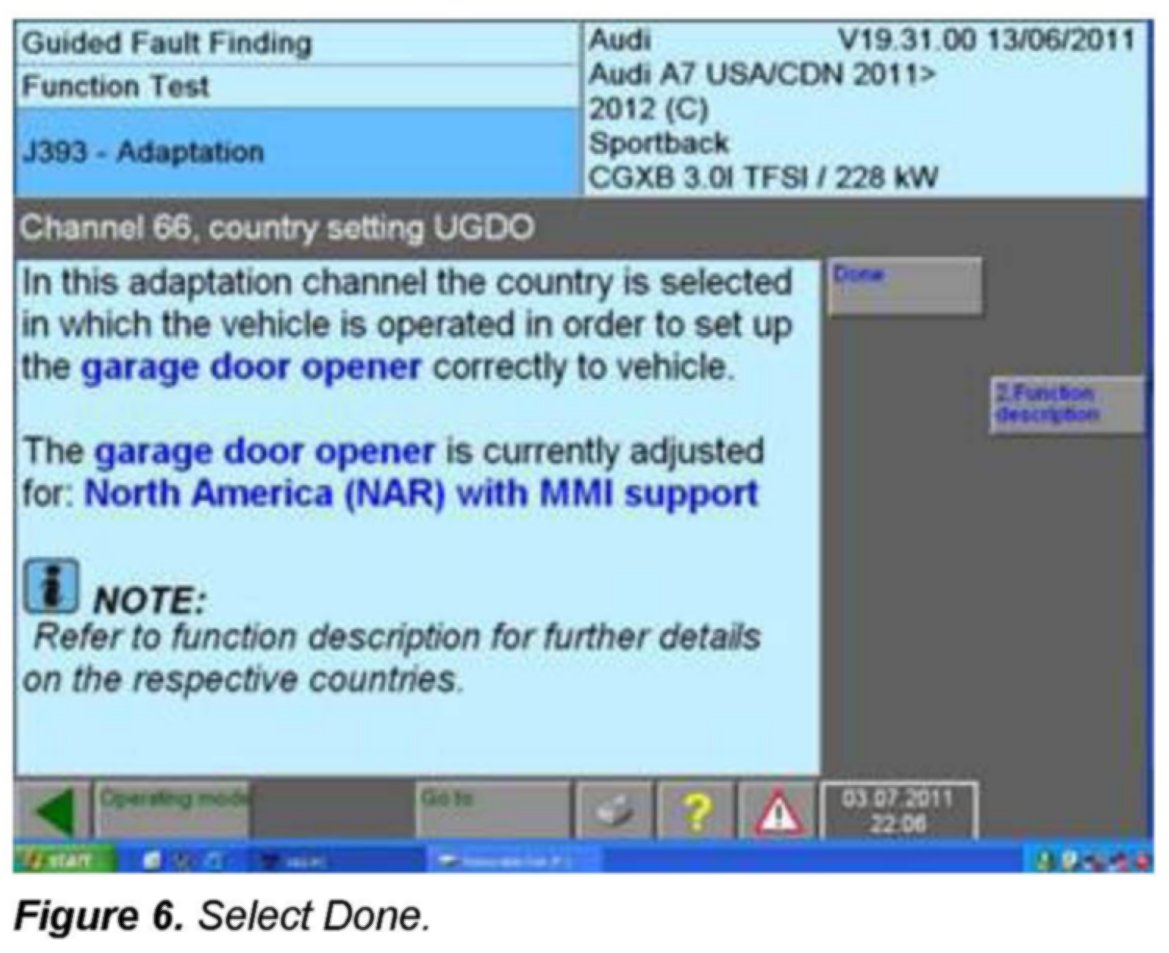

b. If the GFF screen displays North America (NAR) with MMI support, the vehicle will need to be adapted to North America (NAR) without MMI support, and then adapted back to North America (NAR) with MMI support.
Select Done and continue with adaptation procedure by following steps 10-22.

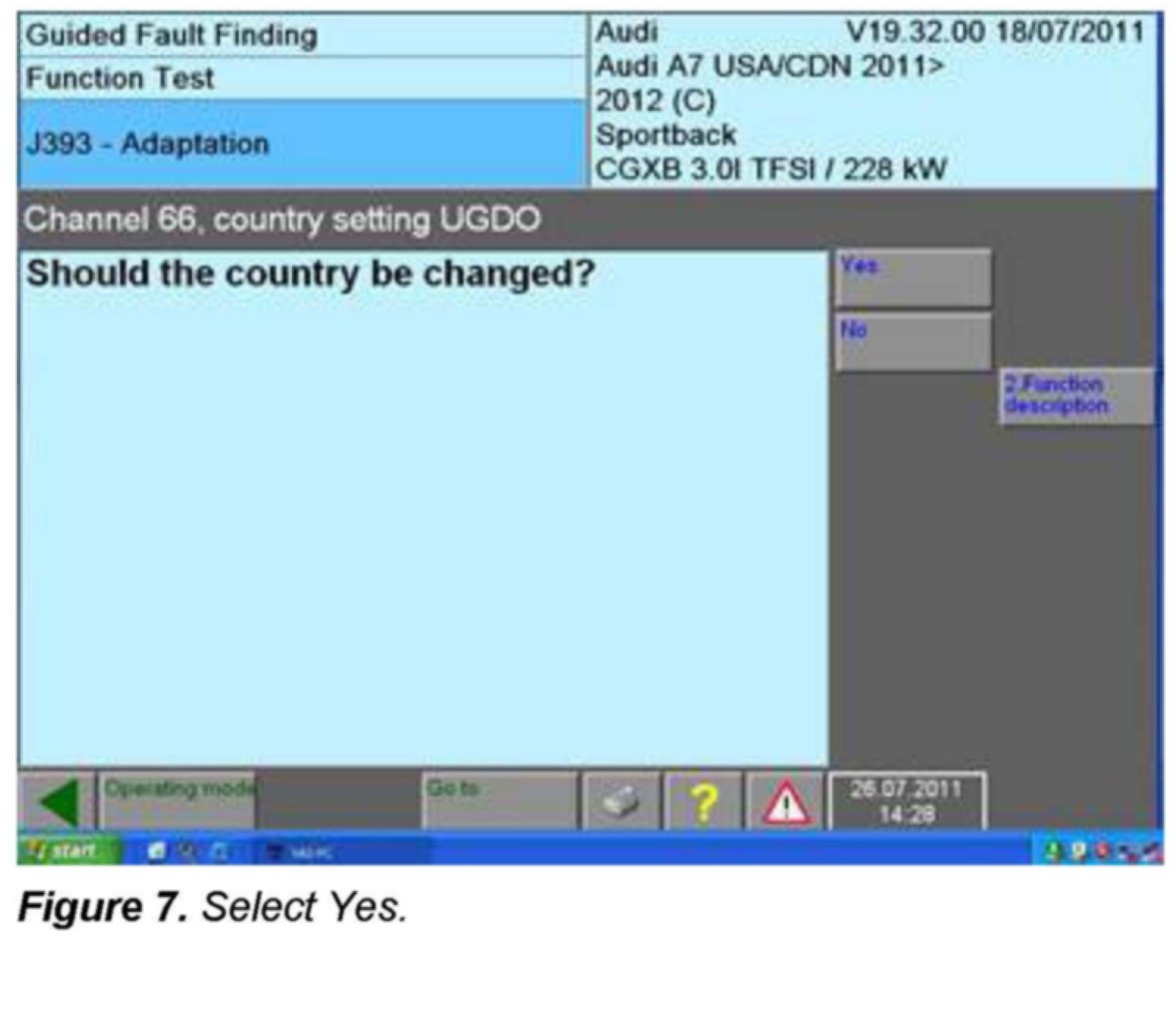

5. Select Yes to change the country selection.

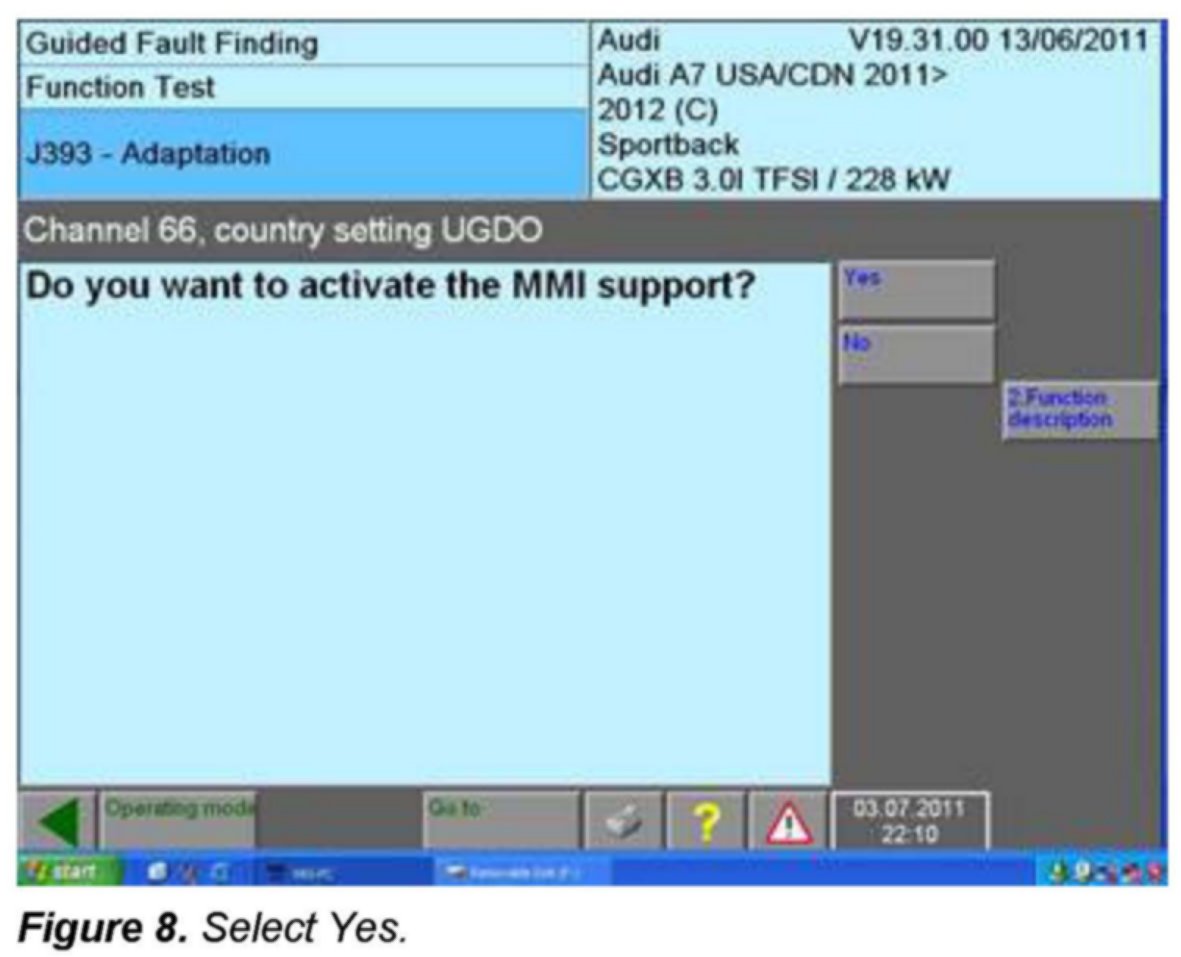

6. Select Yes to activate the MMI support.

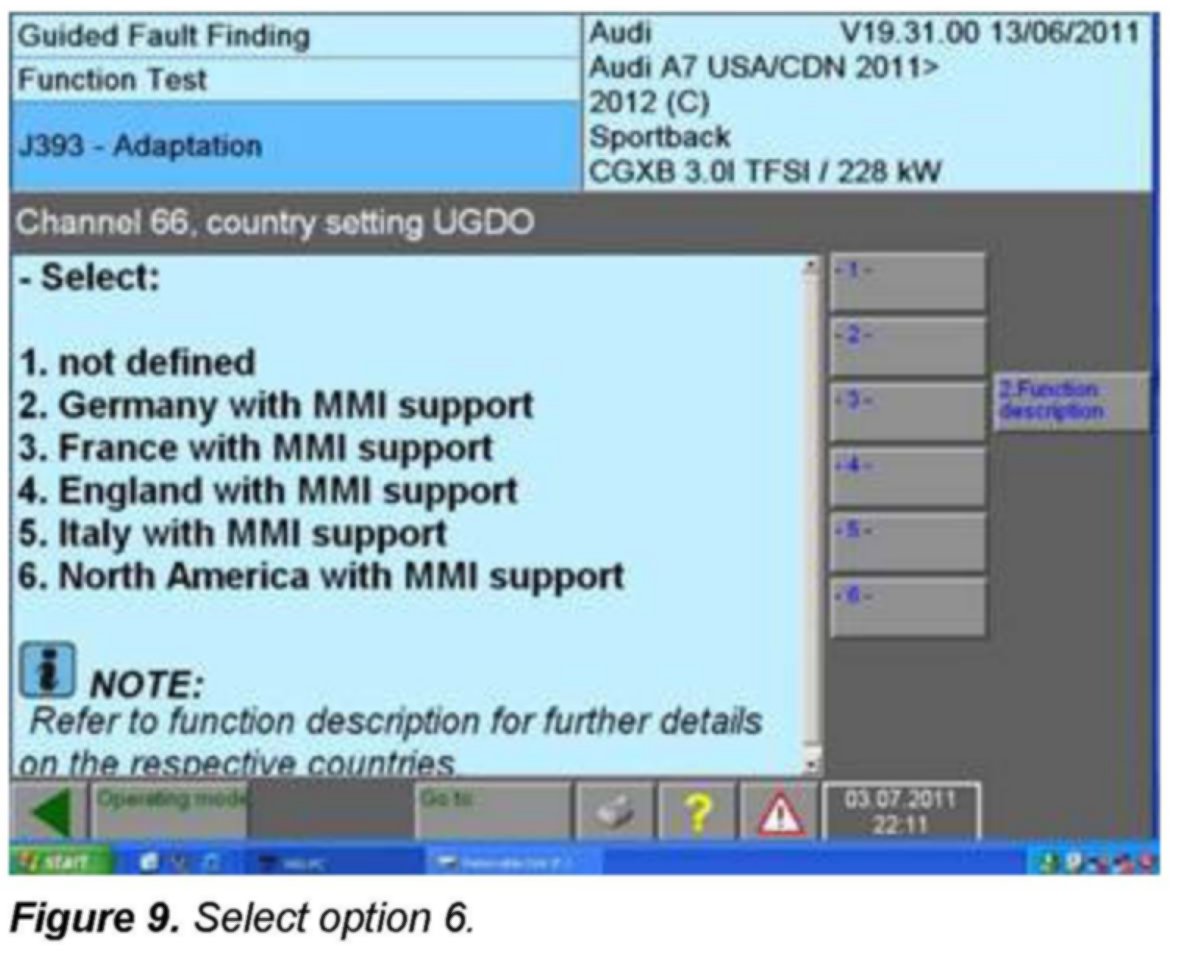

7. Select option 6 (North America with MMI support) to adapt channel 66.

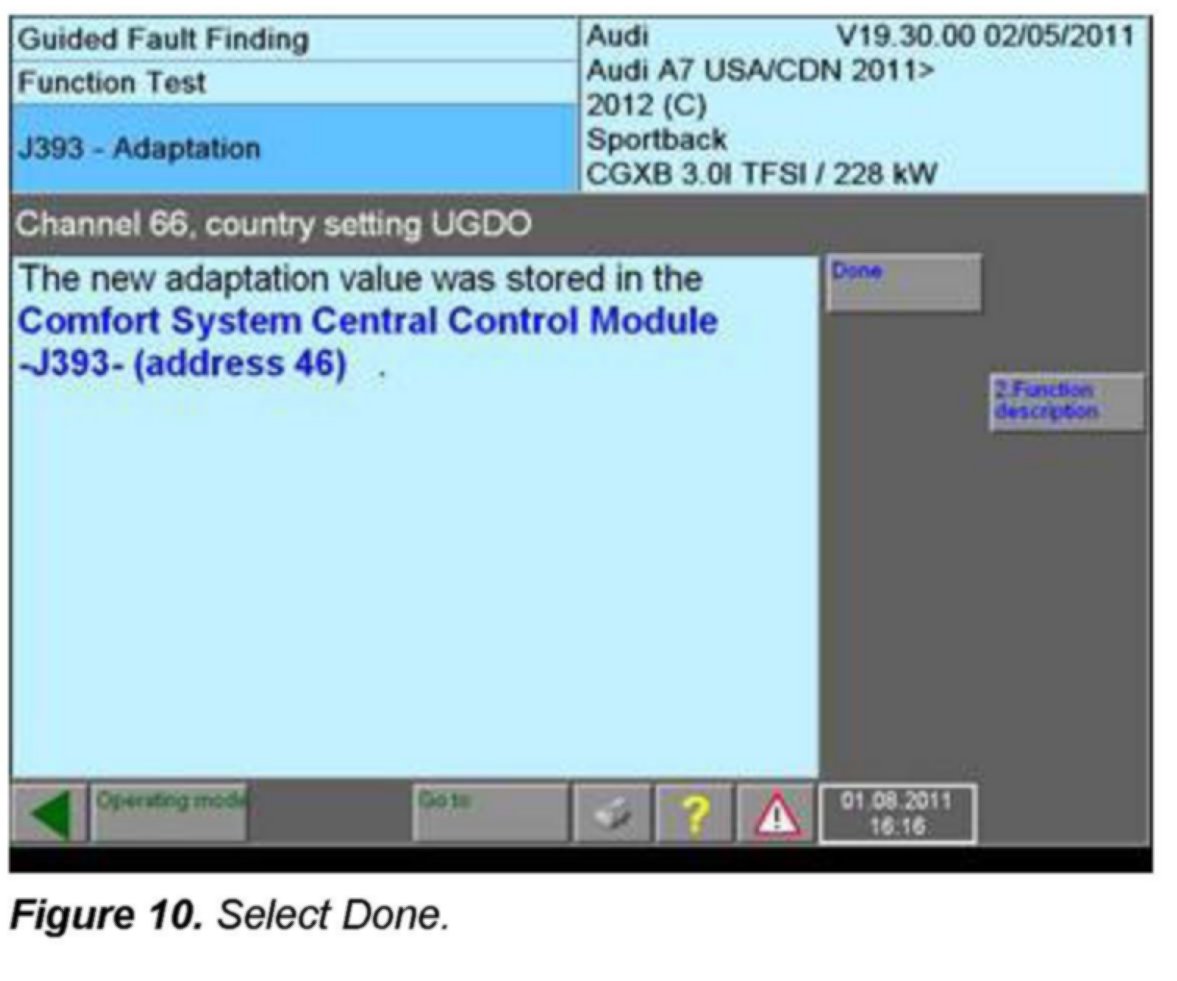

8. Select Done to complete the adaptation procedure.
9. Once completed, back out of the 46 module, cycle the key and then follow the Homelink programming process in the MMI.
Follow steps 10 through 22 if, in step 4B the GFF screen displays North America (NAR) with MMI support.
10. Select Yes to change the country selection.

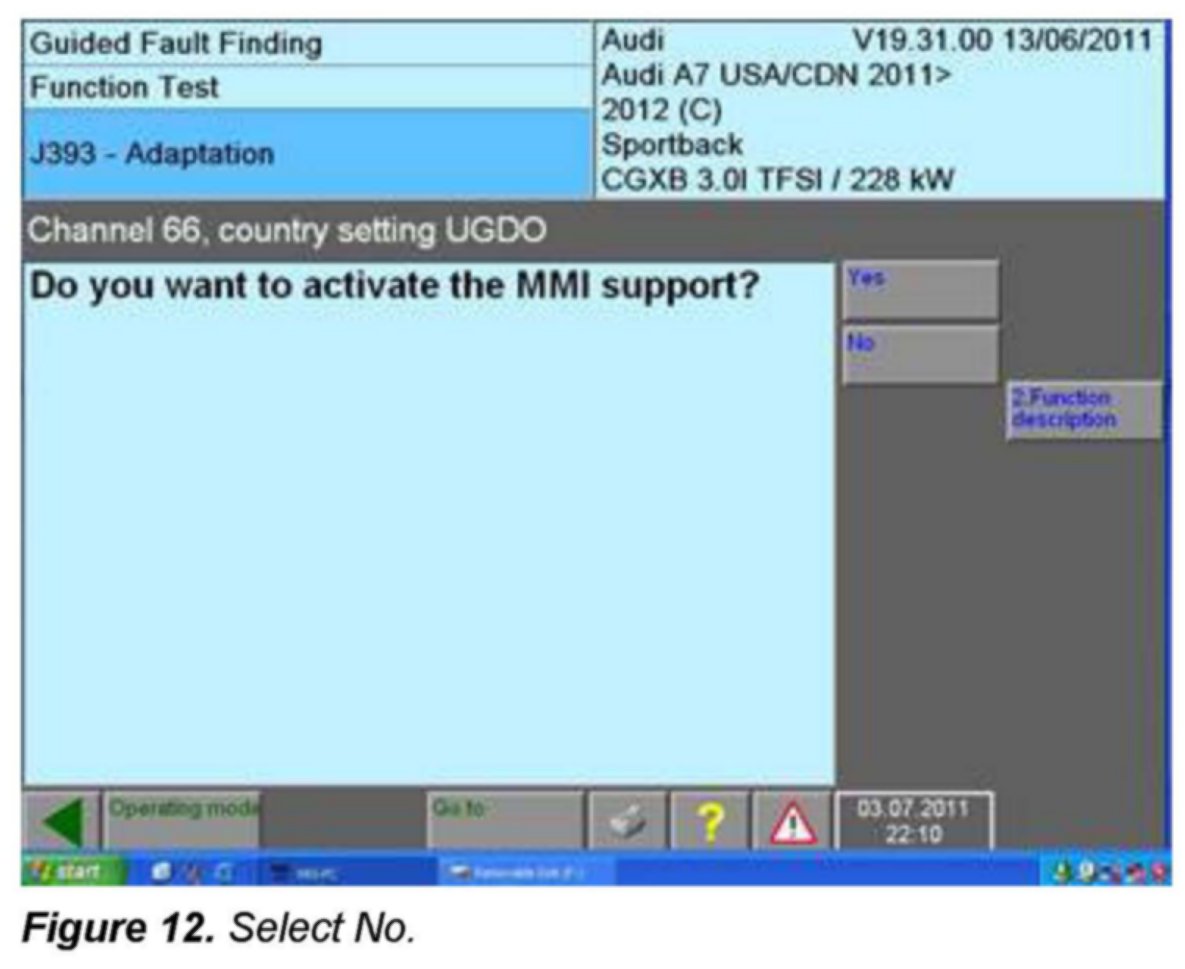

11. Select No to not activate the MMI support.

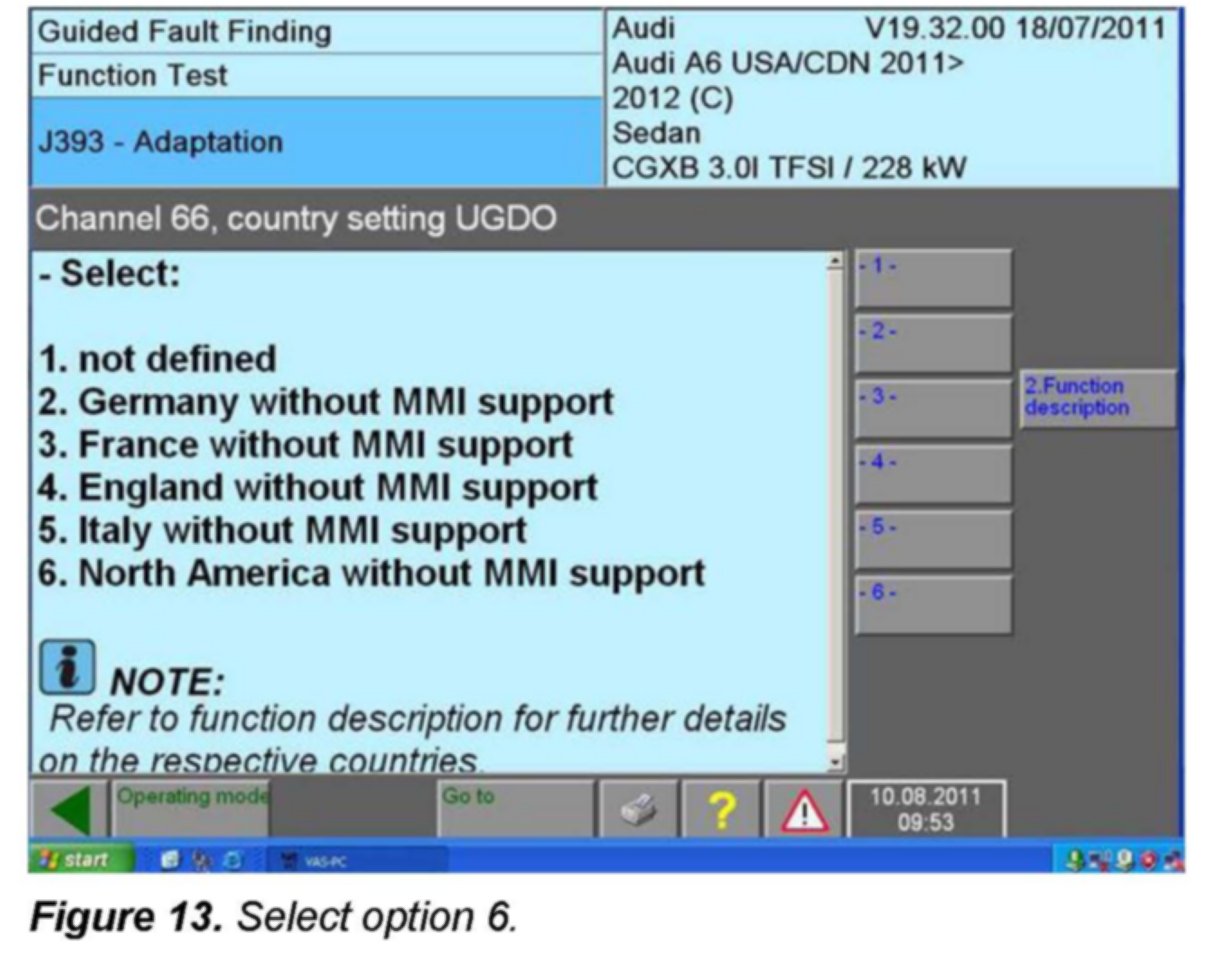

12. Select option 6 (North America without MMI support) to adapt channel 66 to.
13. Select Done to complete the adaptation procedure.

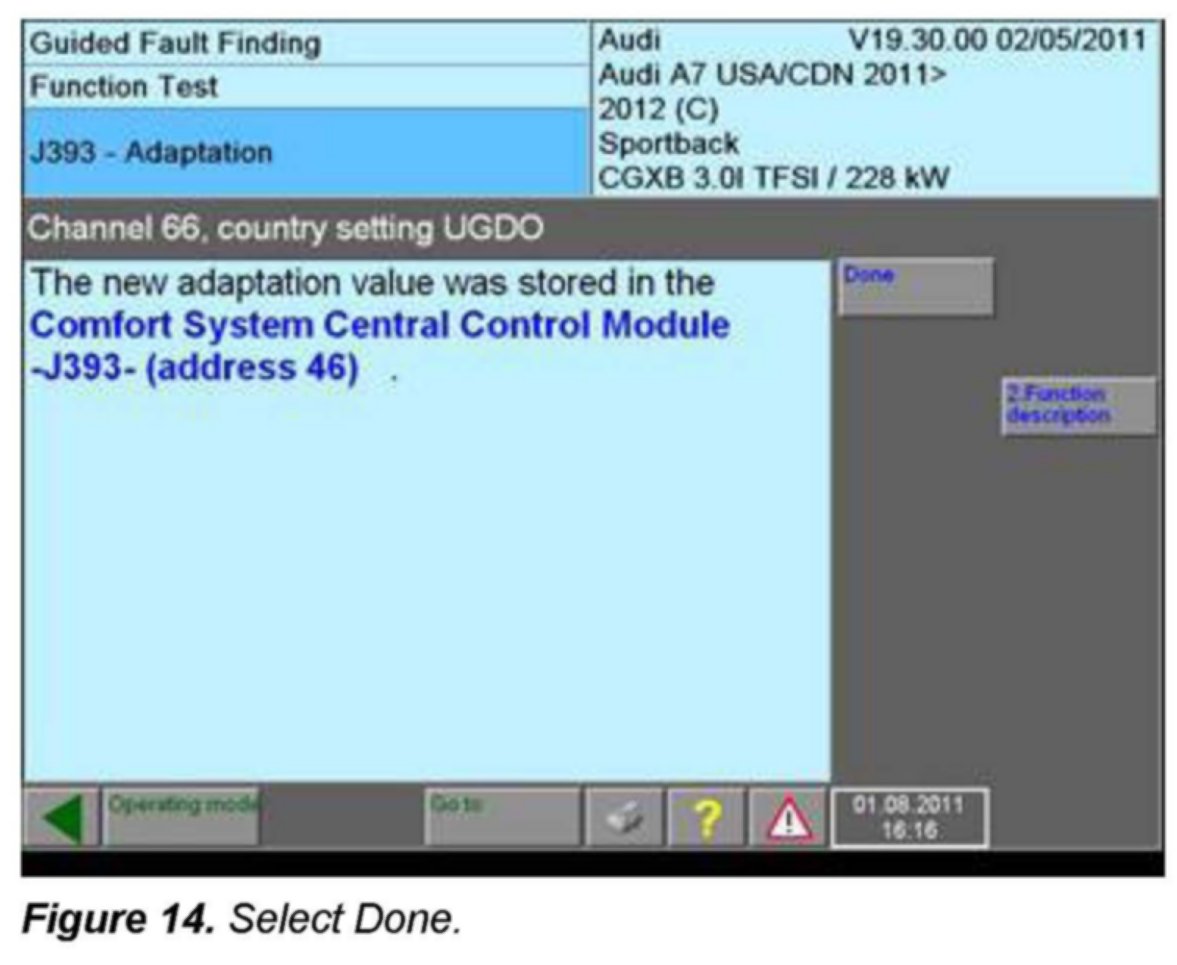

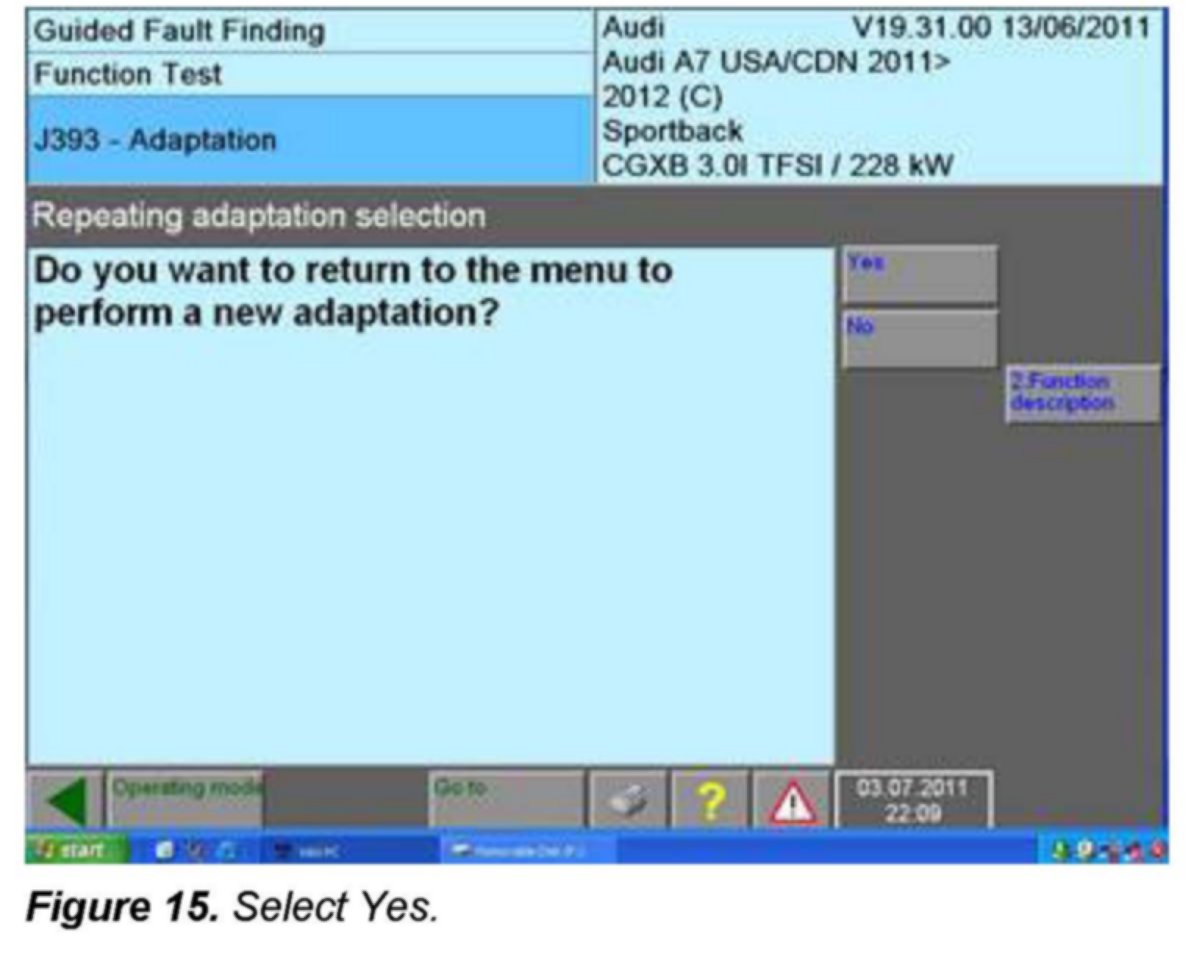

14. Select Yes to perform the adaptation once again to the correct value.

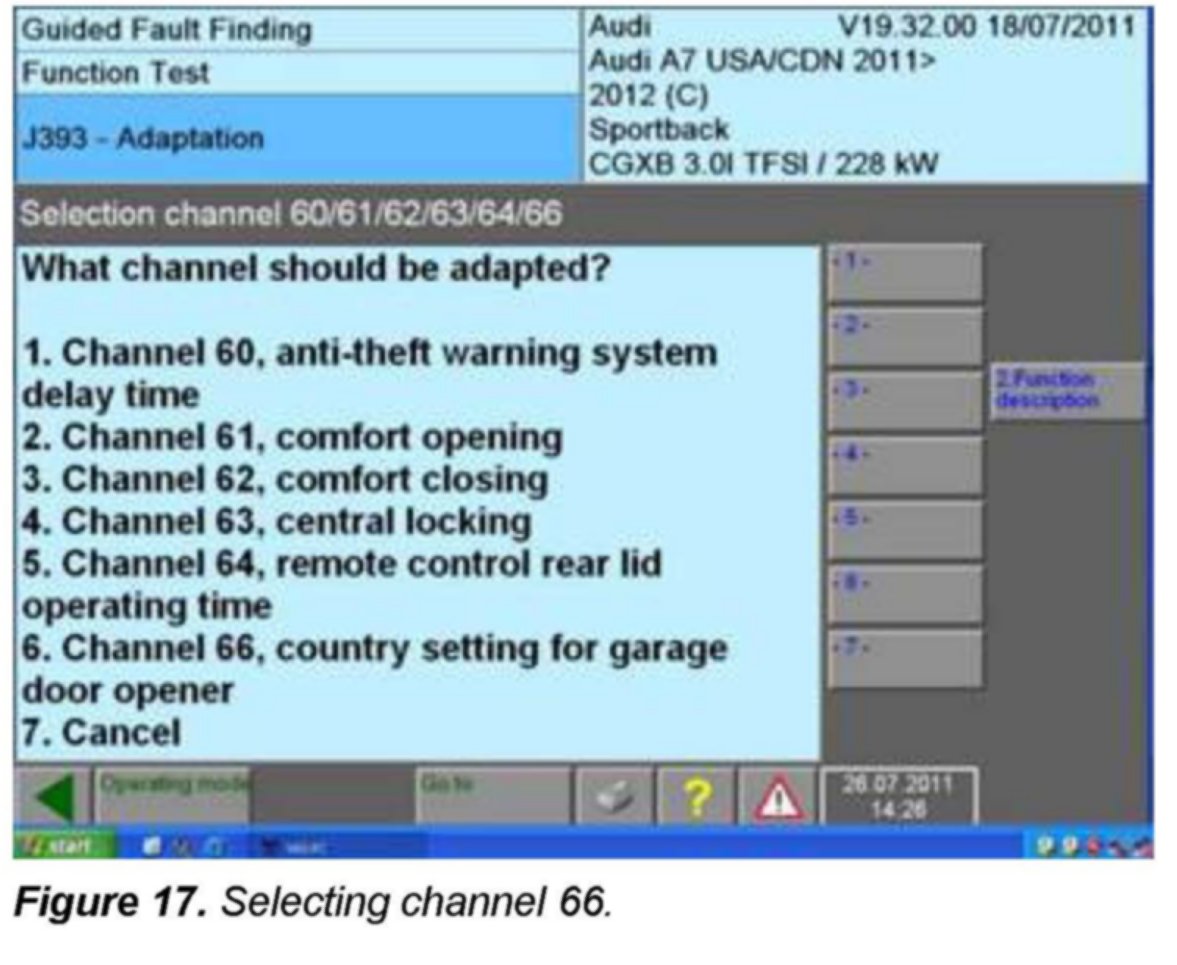

15. Select option 2 to enter adaptation channel 66.

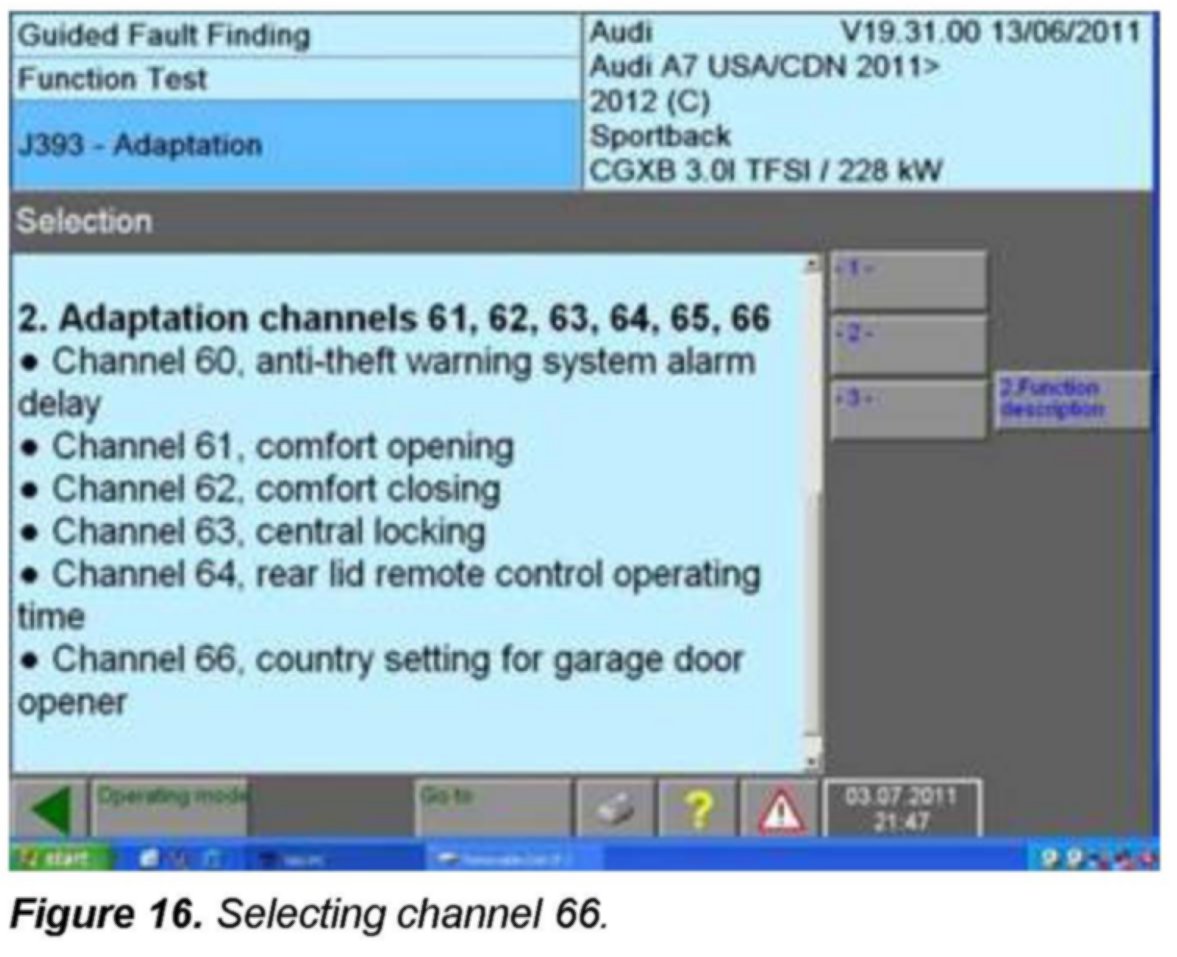

16. Select option 6 to adapt channel 66.
17. Select Done to continue with adaptation procedure.
Note:

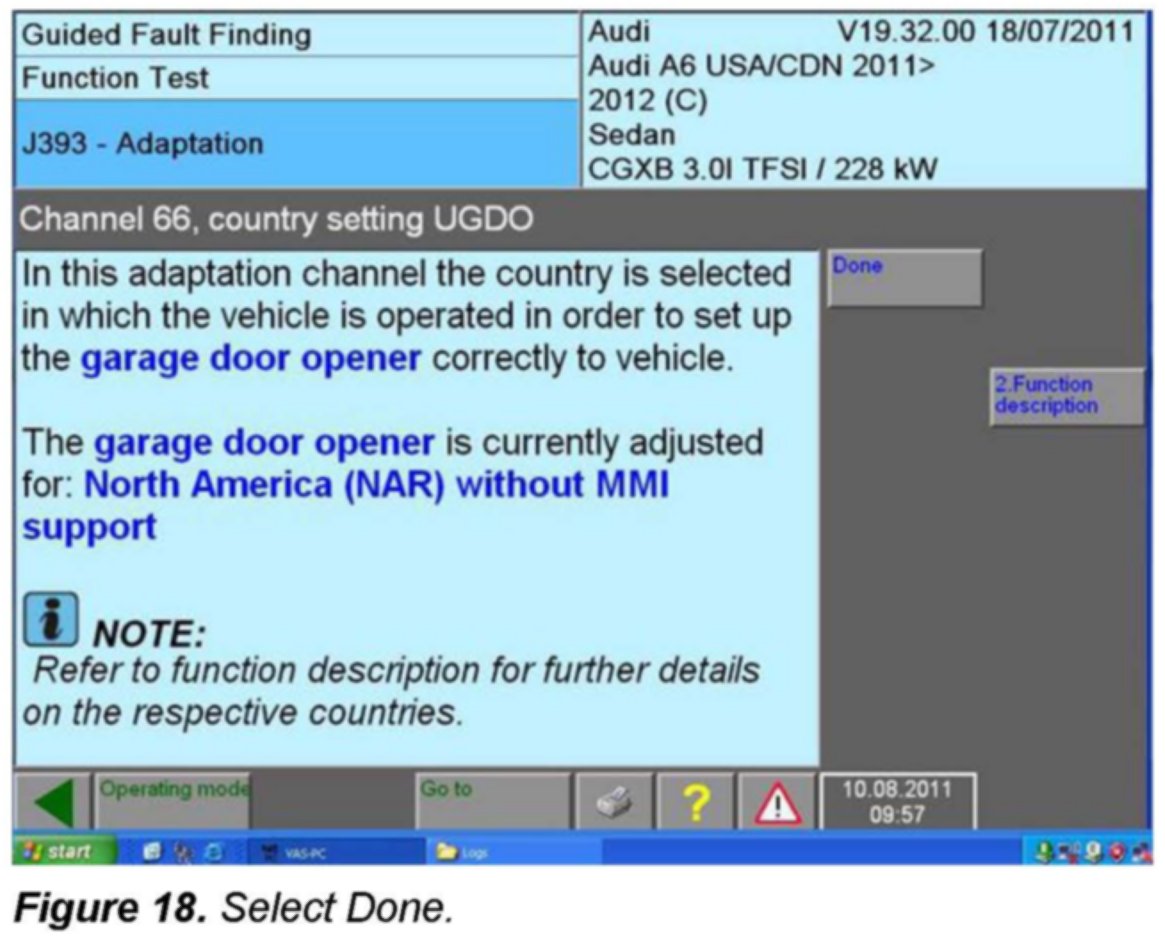

Figure 18 illustrates North America without MMI support.

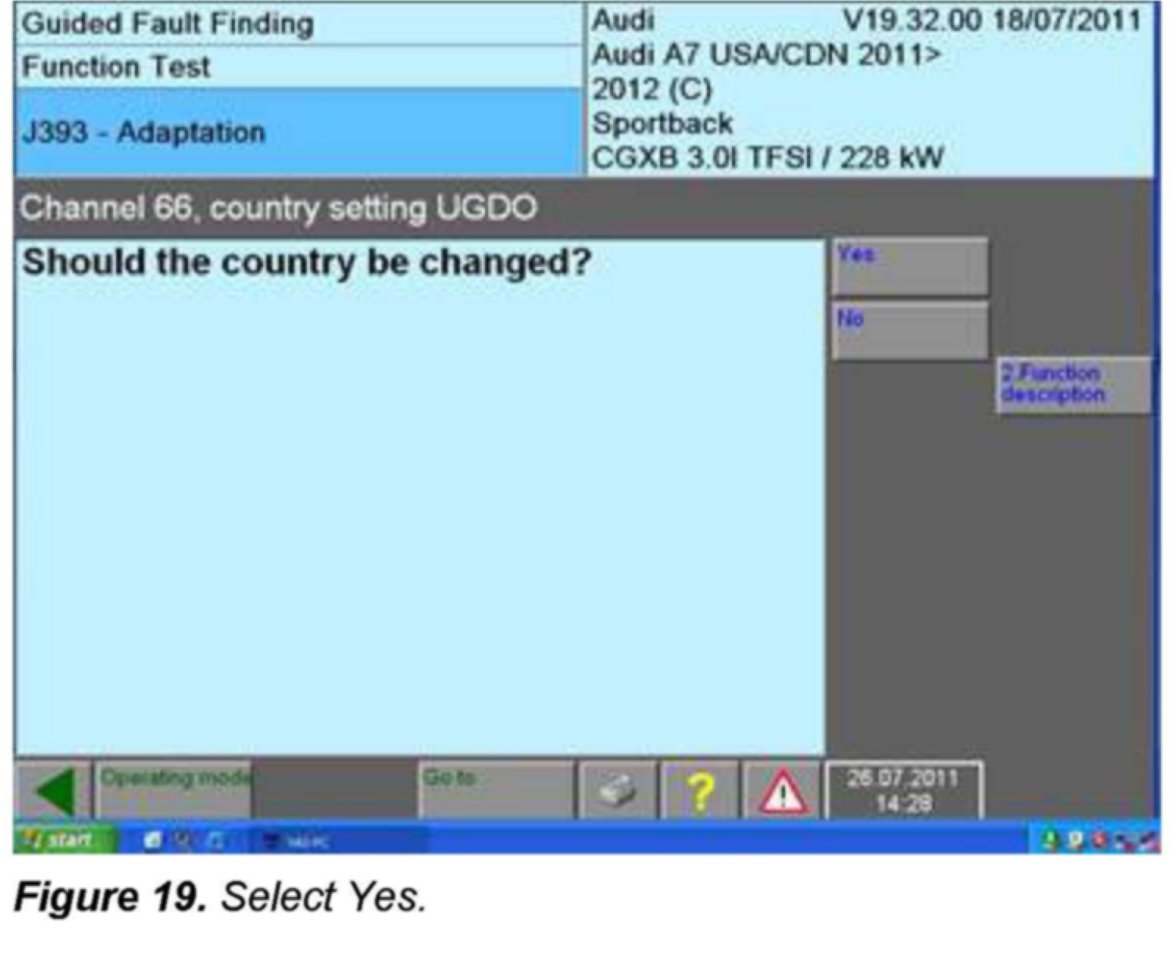

18. Select Yes to change the country selection.

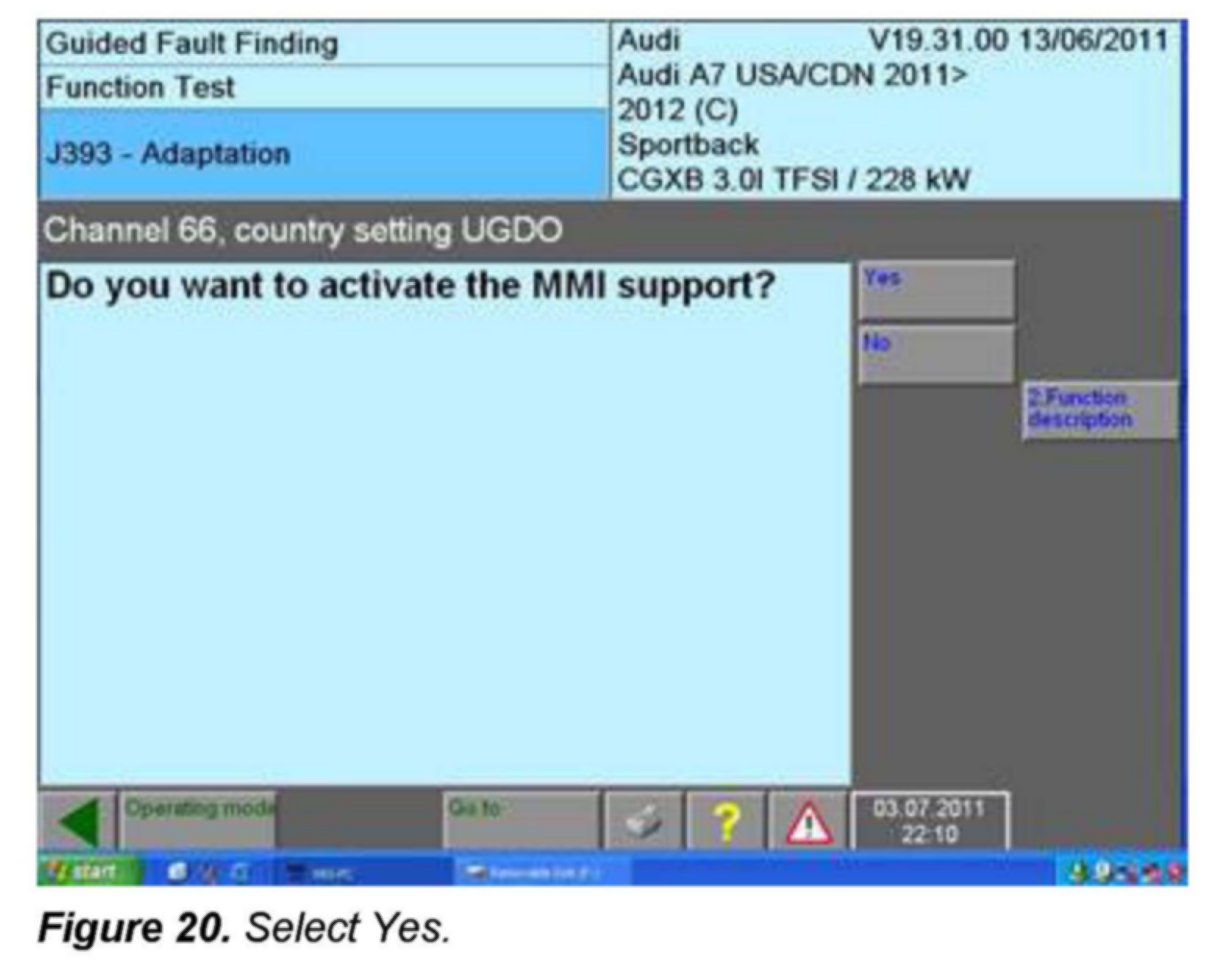

19. Select Yes to activate the MMI support.

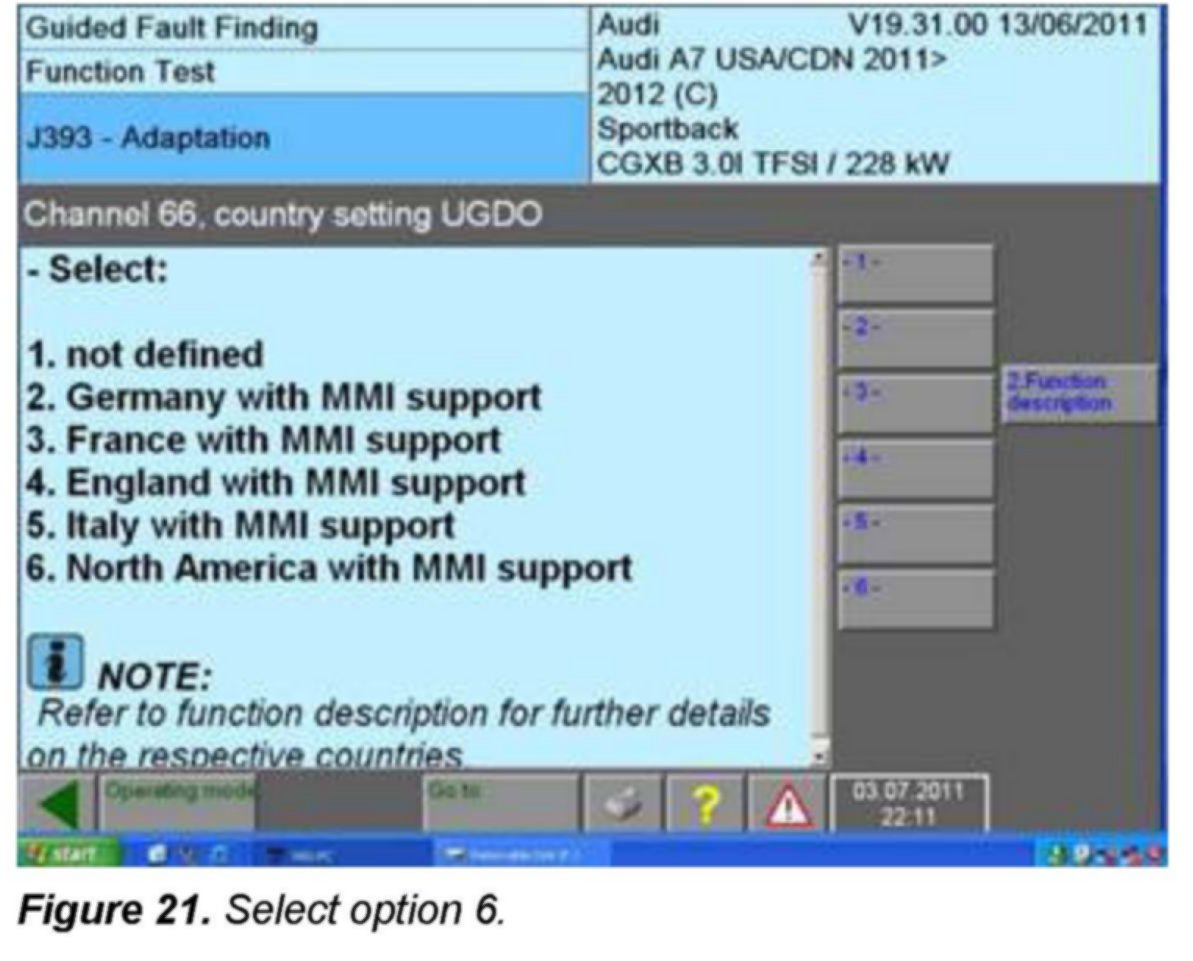

20. Select option 6 (North America with MMI support) to adapt channel 66.

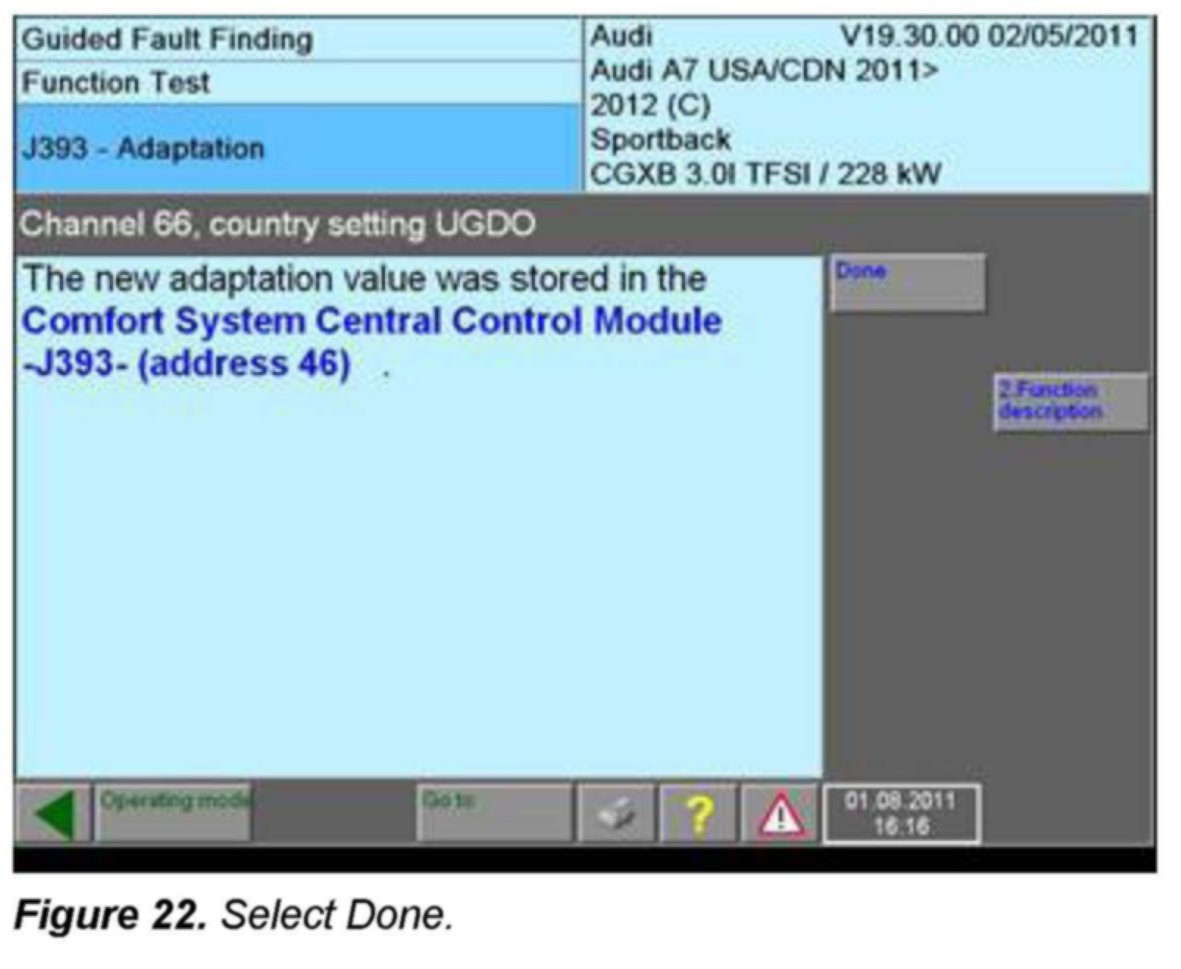

21. Select Done to complete the adaptation procedure.
22. Once completed, back out of the 46 module, cycle the key and then follow the Homelink programming process in the MMI.

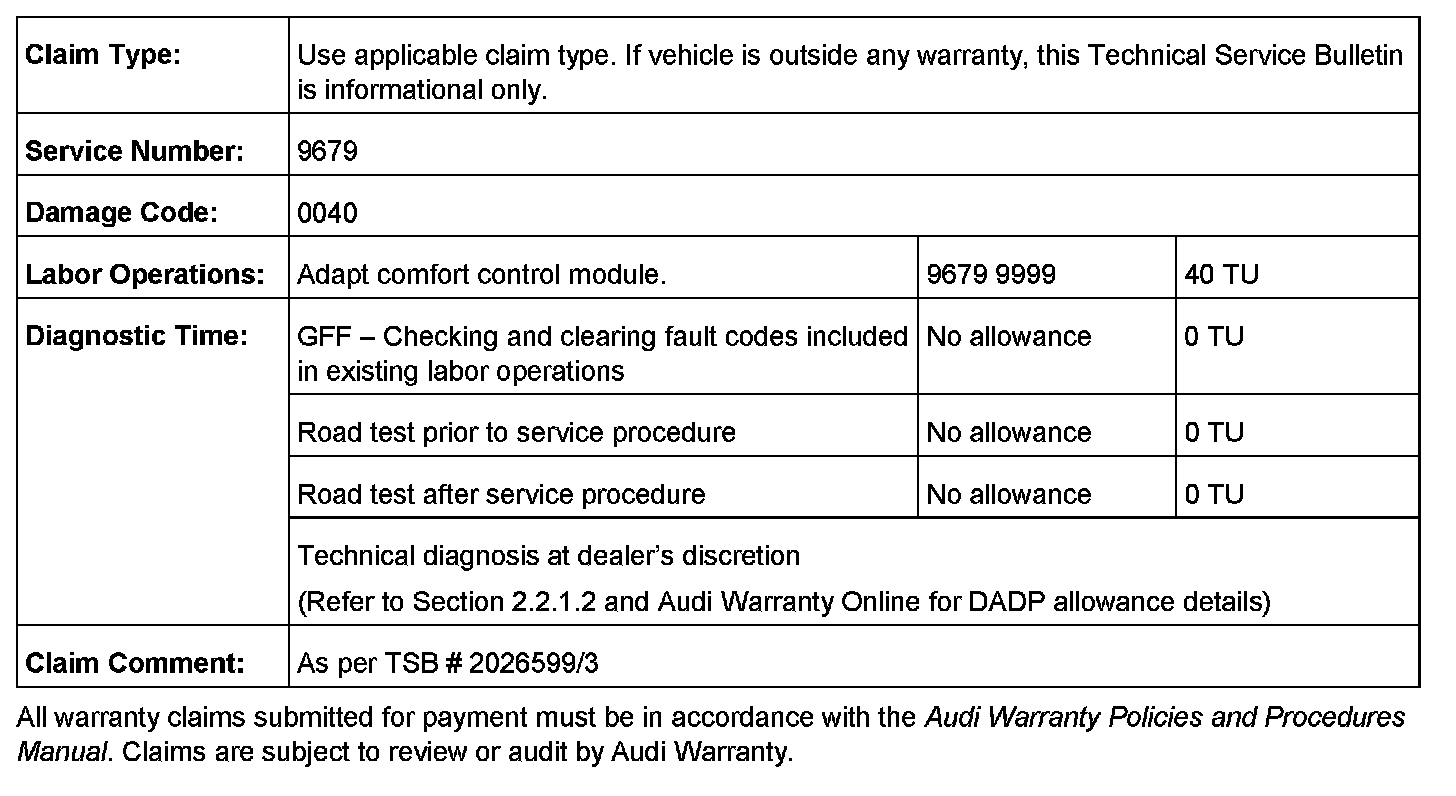

Warranty
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
