Image Processing Control Module -J851-







Overview of Control Modules

Image Processing Control Module -J851-

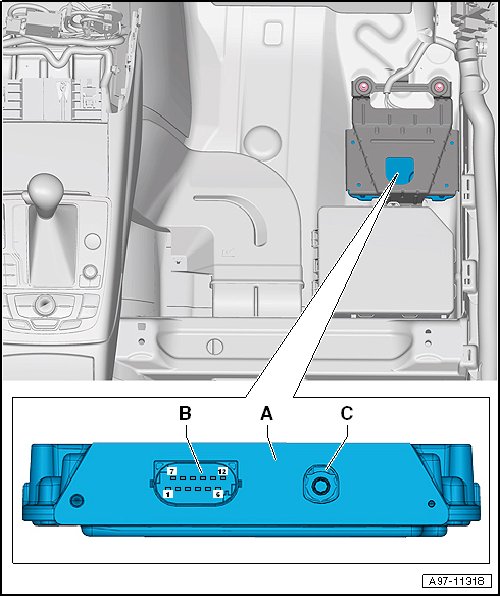

Component Location, left-hand
drive:
Below front passenger's seat





A - Image Processing Control Module -J851-

B - 12-Pin Connector -T12i- , black

C - 5-Pin Connector -T5i- , black
