Distance Regulation Control Module 2 -J850-







Overview of Control Modules

Distance Regulation Control Module 2 -J850-

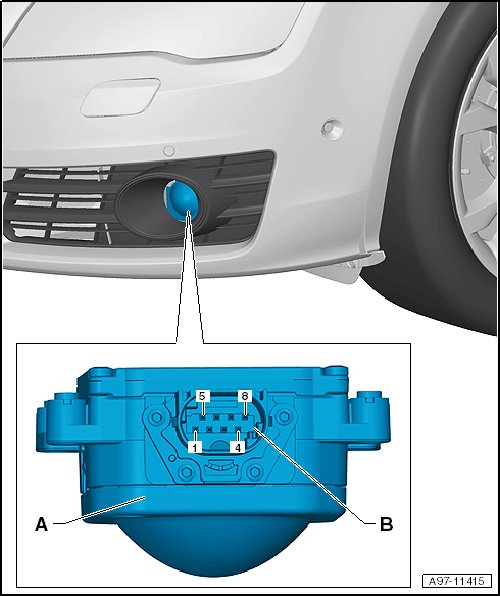

Component Location:
Below front left headlamp





A - Distance Regulation Control Module 2 -J850-

B - 8-Pin Connector -T8l- , black
