Collision Avoidance - Image Processing Control Unit

96 Replaced image processing control unit cannot be coded

96 11 26

2028240/1

December 20, 2011.

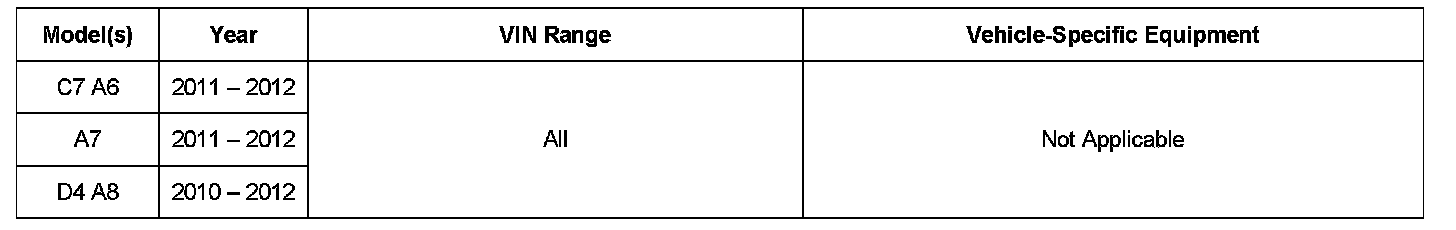

Affected Vehicles

Condition
After replacing the Image Processing control unit, the control unit cannot be coded via SVM spec/actual.

Technical Background

The coding container located on the central server has changed for the Image Processing control unit and because of this an SVM code is required for coding any replacement control unit. Simply running an SVM specified vs. actual comparison will not code the new replacement control unit.

Production Solution

Not applicable.

Service

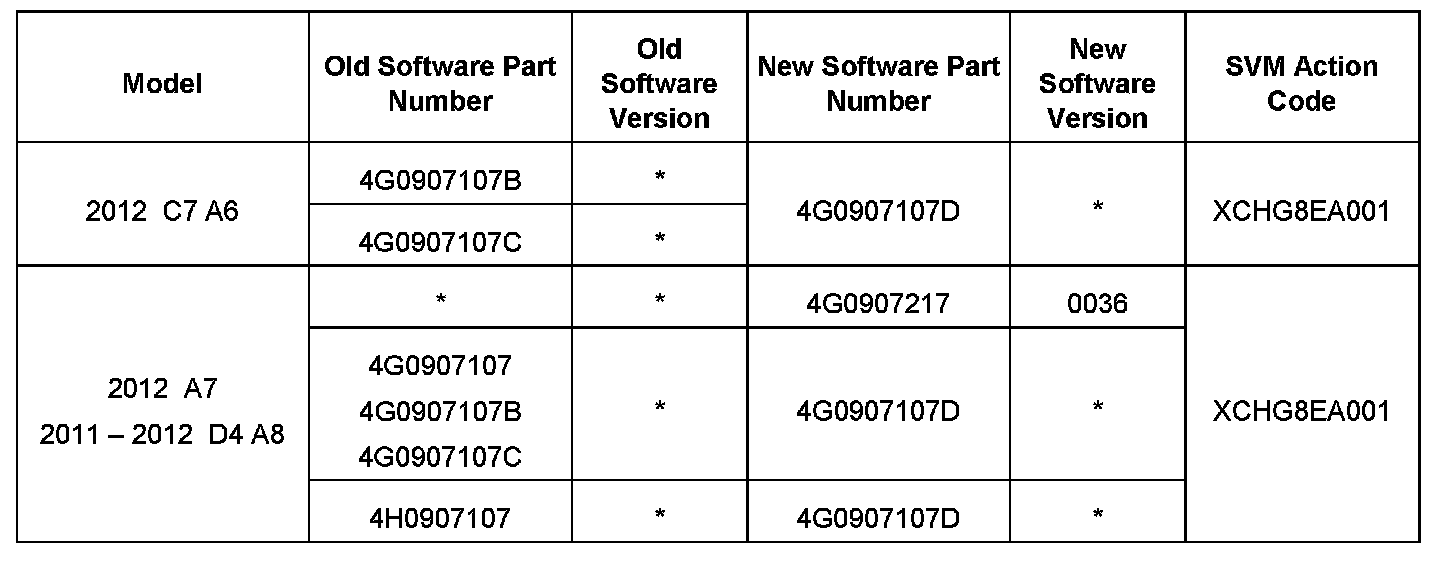

When replacing the Image Processing control unit (J851), perform an SVM coding using an SVM code.





Note:
If the P/N 4G0907217 is installed in the vehicle then an additional parameterization will be performed.

No software update is performed during this SVM communication.

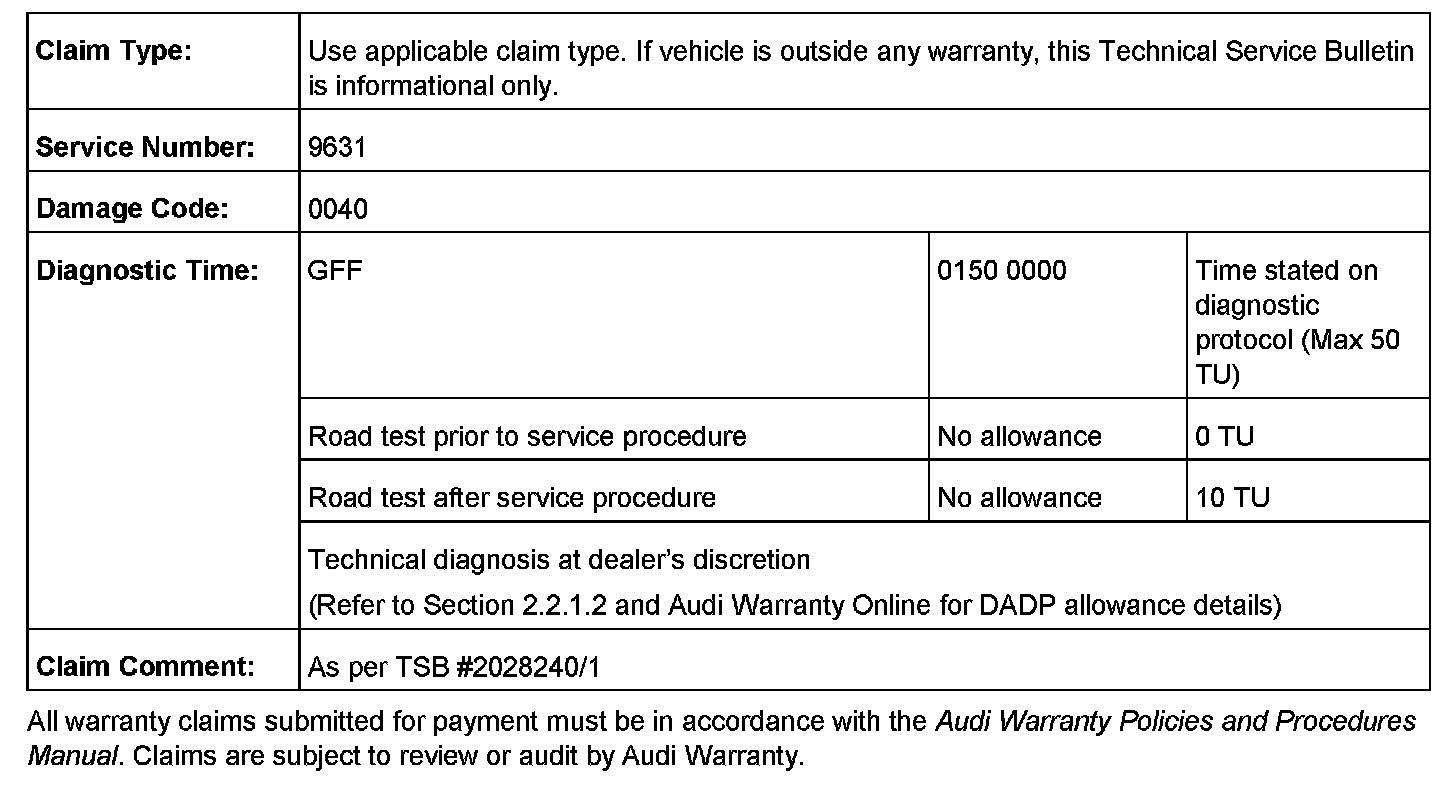

Warranty

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
