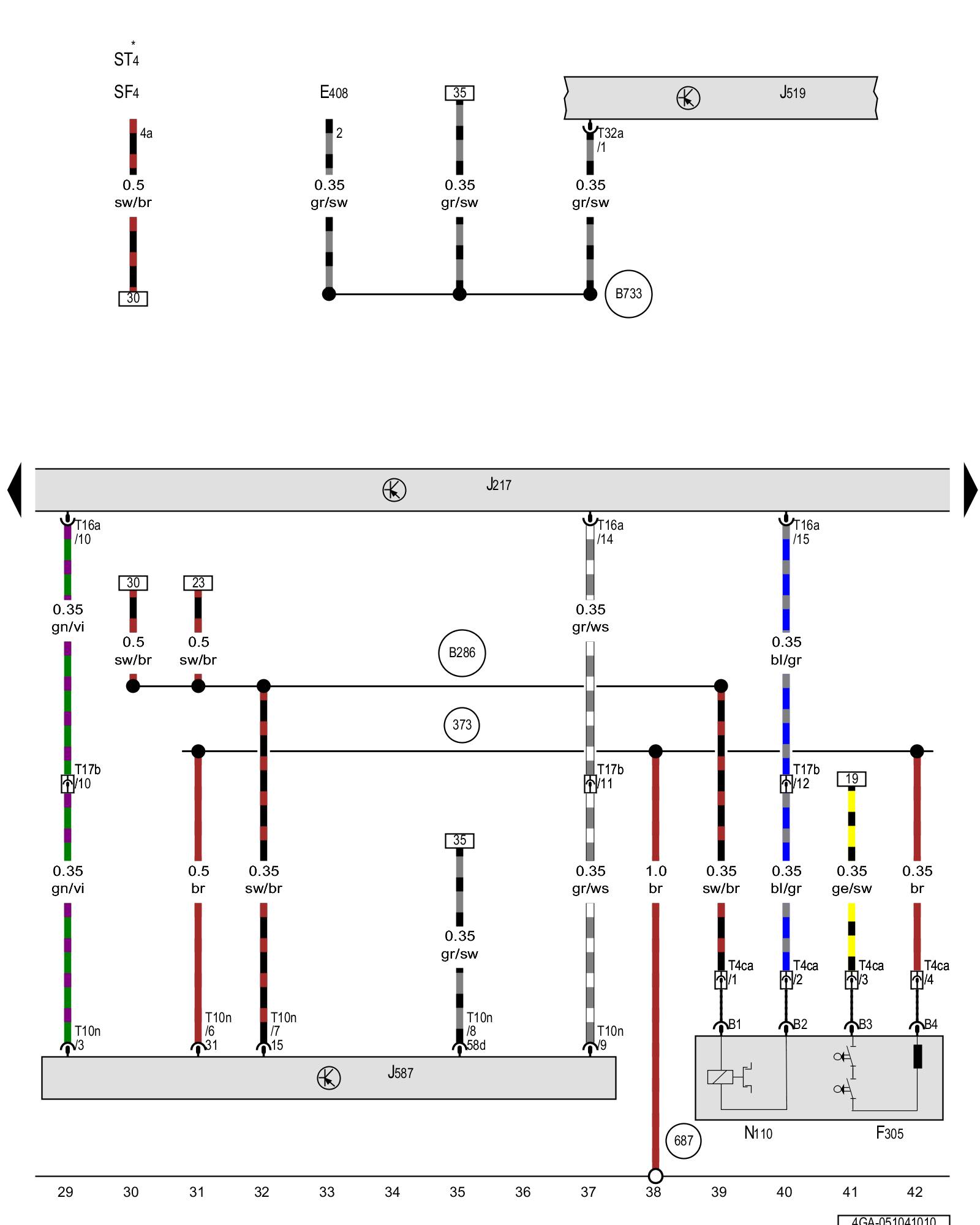

Diagram 51/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Transmission park selector switch, Transmission control module, Vehicle electrical system control module, Selector lever sensor system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E408 - Access/start authorization button

F305 - Transmission park selector switch Locations

J217 - Transmission control module Locations

J519 - Vehicle electrical system control module Locations

J587 - Selector lever sensor system control module Locations

N110 - Shift lock solenoid Locations

SF4 - Fuse 4 (on fuse panel F)

ST4 - Fuse panel 4

T4ca - 4-pin connector

T10n - 10-pin connector

T16a - 16-pin connector

T17b - 17-pin connector Locations

T32a - 32-pin connector Vehicle Electrical System Control Module -J519-

(373) - Ground connection 8 (in main wiring harness)

(687) - Ground connection 1 on center tunnel [1][2]Ground Locations

(B286) - Positive connection 10 (15a) (in main wiring harness)

(B733) - Connection 3 (58s) (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

Previous Diagram 51/3 (Tracks 15-28)

Next Diagram 51/5 (Tracks 43-56)
