Diagram 51/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

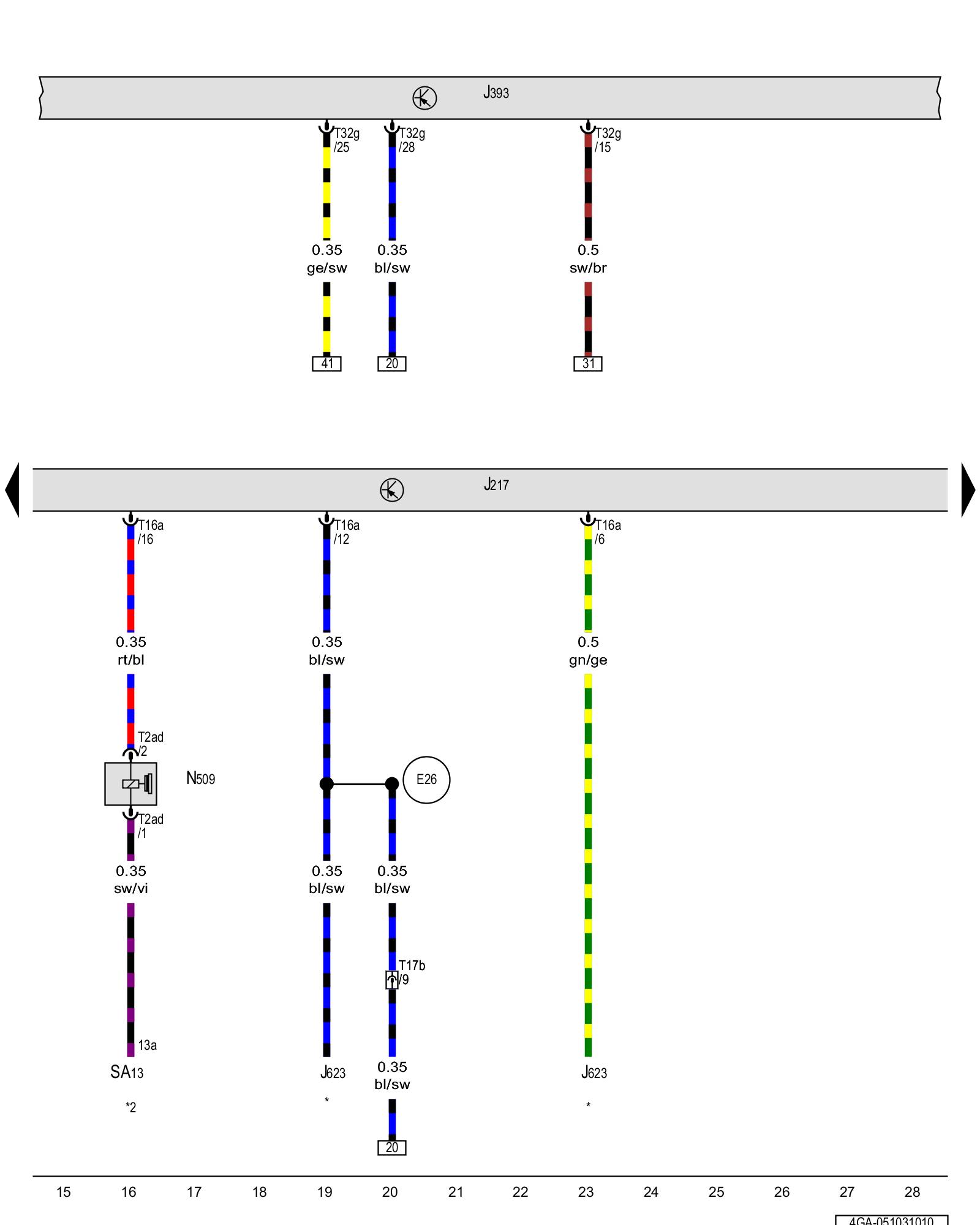

Transmission control module, Transmission fluid cooling valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J217 - Transmission control module Locations

J393 - Comfort system central control module Locations

J623 - Engine control module Locations

N509 - Transmission fluid cooling valve Locations

SA13 - Fuse 13 (on fuse panel A)

T2ad - Double connector

T16a - 16-pin connector

T17b - 17-pin connector, Left plenum chamber E-box connector station Locations

T32g - 32-pin connector Locations

(E26) - Selector lever P/N position connection (in Motronic multiport fuel injection wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Refer to applicable wiring diagram for fuse positions

Previous Diagram 51/2 (Tracks 1-14)

Next Diagram 51/4 (Tracks 29-42)
