Multiport Fuel Injection

Special Tools

Special tools, testers and auxiliary items required

• Ring Spanner 7-Piece Set (3337)






• Tool Set (T10133)






• Release Tool f/ Rev. Light Switch Conn. (T40138).






• Fuel Inj. Pressure Gauge-CIS (V.A.G 1318)

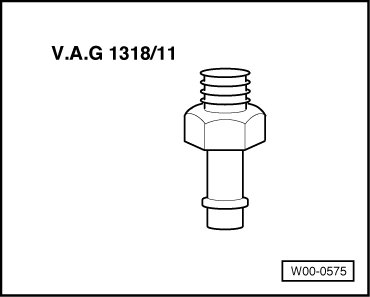

• Adapter (V.A.G 1318/11)

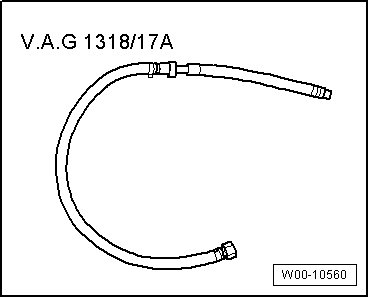

• Adapter Set (V.A.G 1318/17A)

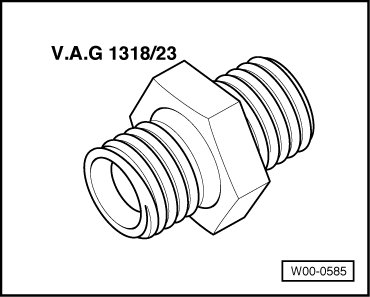

• Fuel Line Feed Adapter (V.A.G 1318/23)






• Ratchet, Reversible (V.A.G 1331/1)






• Tool Insert, AF 17 (V.A.G 1331/6)






• Adapter Lead (V.A.G 1598/39)






• Test Box 105 Pin (V.A.G 1598/42)

• Vehicle Diagnostic Tester

• Hand Vacuum Pump (VAS 6213)






• Not illustrated:

• Special Wrench (3337/2)

• Oxygen Sensor Probe Wrench (3337/7)

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Ring Spanner Insert (V.A.G 1331/2)

• Socket Insert AF 14 (V.A.G 1331/8)

• Voltage Tester (V.A.G 1527B)

• Multimeter (V.A.G 1526E)

• Connector Test Set (V.A.G 1594C)
