Secondary Air Injection Sensor 1, Checking

Secondary Air Injection Sensor 1, Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• Fuse (SB10) OK.

• The Motronic Engine Control Module (ECM) Power Supply Relay (J271) OK.

• The ignition switched off.

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check.

Start diagnosis

- Remove the engine covers. Refer to the appropriate service manual.

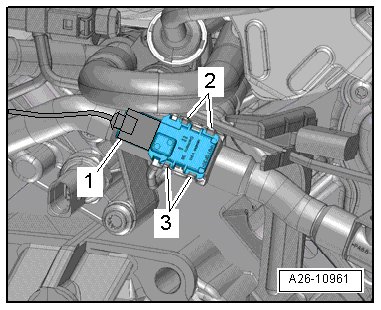

- Disconnect the Secondary Air Injection Sensor 1 (G609) electrical harness connector - 1 -.






Checking voltage supply

- Switch the ignition ON.

- Using a Multimeter, Check the Secondary Air Injection Sensor 1 (G609) electrical harness connector terminals 1 to 3 for voltage.






Specified value: near 5.0 V

- Switch the Ignition OFF.

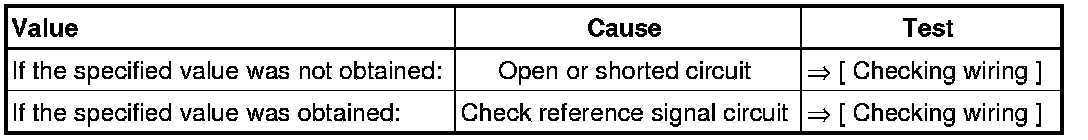

Continue test according to the following table:






Checking wiring

- Remove the Motronic Engine Control Module (ECM) (J623). Refer to appropriate service manual.

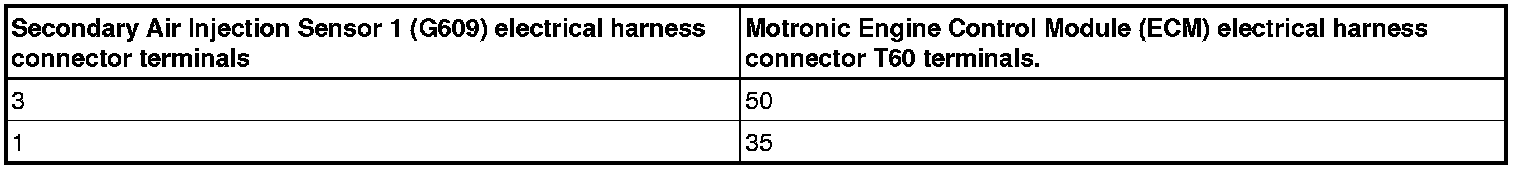

- Using a Multimeter, Check the Secondary Air Injection Sensor 1 (G609) electrical harness connector to the Motronic Engine Control Module (ECM) electrical harness connector T60 for an open circuit.











Specified value: 1.5 ohms Max.

If the specified value was Not obtained:

- Check the wiring connection for an open circuit, short circuit to Battery positive or Ground

- Check the wiring connection for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

- Go to Final procedures

If the specified value was obtained:

- If no faults were found Replace the Motronic Engine Control Module (ECM) (J623). Refer to appropriate service manual.

- Go to Final procedures

Checking wiring

If the manufacturers test box is being used, perform the following step.

- Install the test box.

If the manufacturers test box is not being used, perform the following step.

- Remove the Motronic Engine Control Module (ECM) (J623). Refer to appropriate service manual.

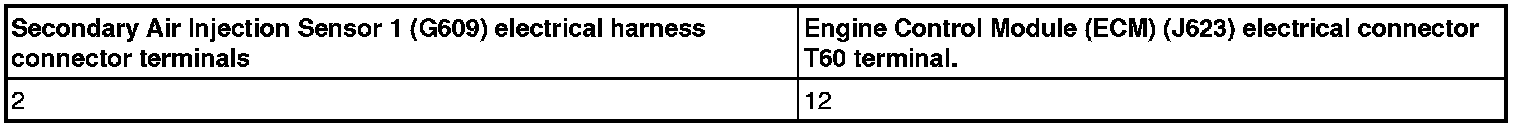

- Using a Multimeter, Check the Secondary Air Injection Sensor 1 (G609) electrical harness connector to the Motronic Engine Control Module (ECM) (J623) electrical harness connector T60 for an open circuit.











Specified value: 1.5 ohms Max.

If the specified value was Not obtained:

- Check the wiring connection for an open circuit, short circuit to Battery positive or Ground

- Check the wiring connection for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

- Go to Final procedures

If the specified value was obtained:

- Replace the Secondary Air Injection Sensor 1 (G609). Refer to appropriate service manual.

Final procedures

- Reinstall the engine covers, if necessary. Refer to the appropriate service manual.

- After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Programming and Relearning.
