CAN-Bus Terminal Resistance, Checking

CAN-Bus Terminal Resistance, Checking

Observe all safety precautions: => [ Safety Precautions ] Generic Scan Tool

View clean working conditions: => [ Clean Working Conditions ] Clean Working Conditions

Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.

For wiring diagrams, component locations, and connector views, Refer to the applicable wiring diagram.

Special tools, testers and auxiliary items required

• Multimeter

• Wiring diagram

Test requirement

• A CAN-Bus malfunction was recognized.

• The Motronic Engine Control Module (ECM) (J623) fuses OK.

• Battery voltage at least 12.5 volts.

• All electrical consumers such as, lights and rear window defroster, switched off.

• Vehicles with automatic transmission, shift selector lever into position "P" or "N".

• A/C switched off.

• Ground (GND) connections between engine/transmission/chassis OK.

• Ignition switched off.

Function

The Motronic Engine Control Module (ECM) (J623) communicates with other CAN-Bus capable control modules.

The control modules are connected by two data bus wires which are twisted together (CAN_High and CAN_Low), and exchange information (messages). Missing information on the CAN-bus is recognized as a malfunction by the Motronic Engine Control Module (ECM) (J623) and the other control modules connected to the CAN-bus.

Trouble-free operation of the CAN-Bus requires that it have a terminal resistance. This central terminal resistance is located in the Motronic Engine Control Module (ECM) (J623).

Test procedure

- Perform a preliminary check to verify the customers complaint. Refer to => [ Preliminary Check ] Preliminary Check

Start diagnosis

- Disconnect the Data Bus On Board Diagnostic Interface (J533) electrical harness connector.

• The Motronic Engine Control Module (ECM) (J623) must remain connected for the following step.

- Using a multimeter, check the Data Bus On Board Diagnostic Interface (J533) electrical harness connector terminals 6 to 16 for resistance.

Specified value: 60 to 72 ohms (at approx. 20° C)

If the specified value was Not obtained:

- Check the wiring connection for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

- If No malfunctions were found replace the Replace the Motronic Engine Control Module (ECM) (J623). Refer to appropriate service manual.

- Go to Final procedures

If the specified value was obtained:

Checking wiring

- Remove the Motronic Engine Control Module (ECM) (J623). Refer to the appropriate service manual.

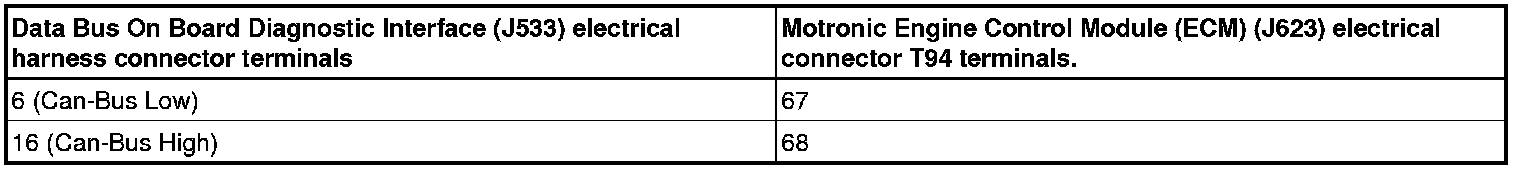

- Using a Multimeter, check the Data Bus On Board Diagnostic Interface (J533) electrical harness connector to the Motronic Engine Control Module (ECM) (J623) electrical harness connector T94 for resistance.






Specified value: 1.5 ohms Max.

If the specified value was Not obtained:

- Check the wiring connection for an open circuit, short circuit to Battery positive or Ground

- Check the wiring connection for damage, corrosion, loose or broken terminals.

- If necessary, repair the faulty wiring connection.

- Go to Final procedures

If the specified value was obtained:

- Replace the Data Bus On Board Diagnostic Interface (J533). Refer to appropriate service manual.

Final procedures

- Reinstall the engine cover with air filter, if necessary. Refer to the appropriate service manual.

- After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Mode 03 - Read DTC Memory ] Diagnostic Modes 01 - 09.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Modes 01 - 09.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Readiness Code ] Programming and Relearning.
