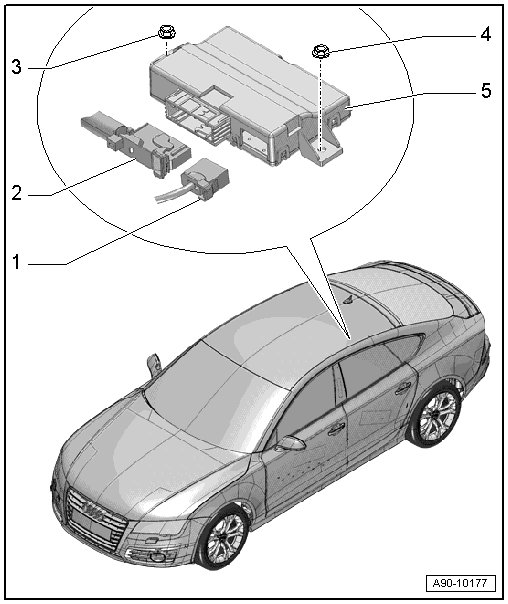

Data Bus On Board Diagnostic Interface (J533) Overview

Data Bus On Board Diagnostic Interface (J533) Overview






1 Fiber Optic Cable Connector

• Attach with the Cable connector protective cap (VAS 6223/9).

2 Electrical Connector

• For the data bus on board diagnostic interface.

3 Nut

• 2 Nm

4 Nut

• 2 Nm

5 Data Bus On Board Diagnostic Interface (J533)

• Removing and installing, refer to => [ Data Bus On Board Diagnostic Interface (J533) ] Data Bus On Board Diagnostic Interface (J533).

• Multi-pin connector pin assignment, refer to => [ Data Bus On Board Diagnostic Interface, Multi-pin Connector Assignment ] [1][2]Connector Views.
