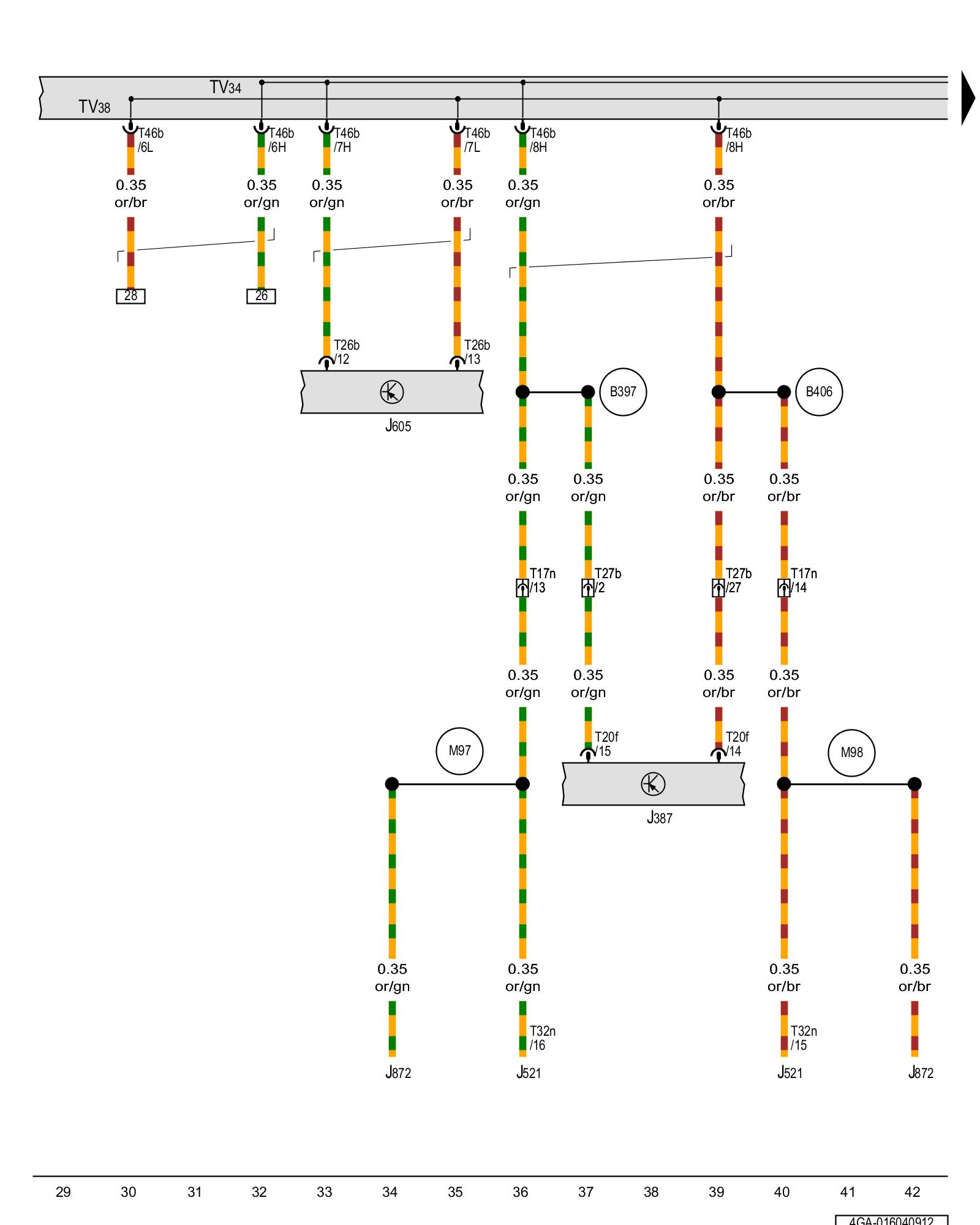

Diagram 16/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Comfort system CAN bus high wire junction, Comfort system CAN bus low wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J387 - Front passenger door control module Locations

J521 - Front passenger memory seat control module

J605 - Rear lid control module Locations

J872 - Front passenger multicontour seat control module

T17n - 17-pin connector, in the coupling point for the right front seat Locations

T20f - 20-pin connector Front Passenger's Door Control Module -J387-

T26b - 26-pin connector Locations

T27b - 27-pin connector, on the right A-pillar

T32n - 32-pin connector

T46b - 46-pin connector

TV34 - Comfort system CAN bus high wire junction, on the relay and fuse carrier in the luggage compartment, right

TV38 - Comfort system CAN bus low wire junction

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

(M97) - Comfort system CAN bus high connection (in front passenger seat adjustment wiring harness)

(M98) - Comfort system CAN bus low connection (in front passenger seat adjustment wiring harness)

Previous Diagram 16/3 (Tracks 15-28)

Next Diagram 16/5 (Tracks 43-56)
