Diagram 16/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

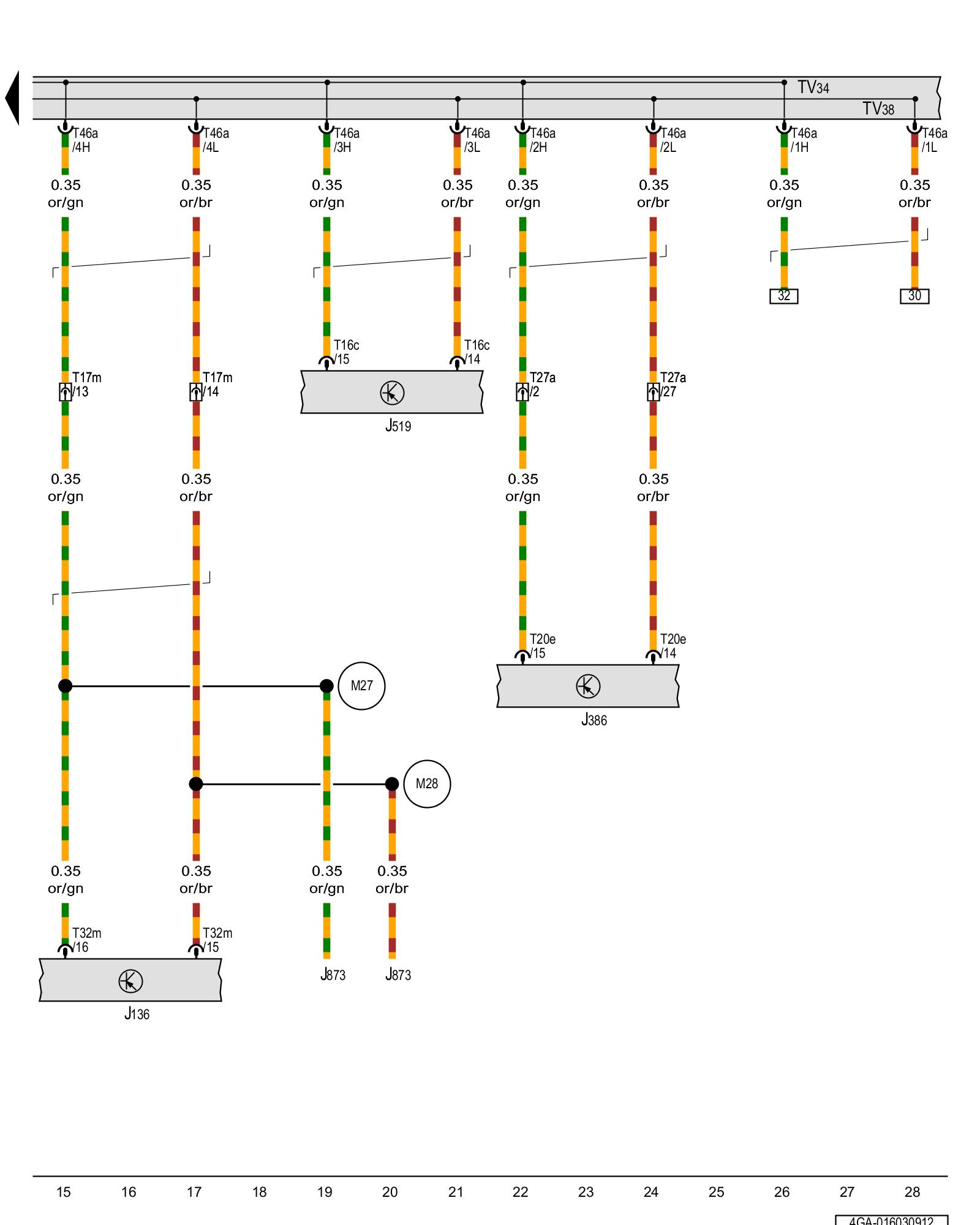

Comfort system CAN bus high wire junction, Comfort system CAN bus low wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J136 - Memory seat/steering column adjustment control module

J386 - Driver door control module

J519 - Vehicle electrical system control module Locations

J873 - Driver multicontour seat control module

T16c - 16-pin connector Vehicle Electrical System Control Module -J519-

T17m - 17-pin connector, in the coupling point for the left front seat Locations

T20e - 20-pin connector Driver's Door Control Module -J386-

T27a - 27-pin connector, on the left A-pillar

T32m - 32-pin connector

T46a - 46-pin connector Locations

TV34 - Comfort system CAN bus high wire junction, in the left A-pillar connector station

TV38 - Comfort system CAN bus low wire junction

(M27) - Comfort system CAN bus high connection (in driver seat adjustment wiring harness)

(M28) - Comfort system CAN bus low connection (in driver seat adjustment wiring harness)

Previous Diagram 16/2 (Tracks 1-14)

Next Diagram 16/4 (Tracks 29-42)
