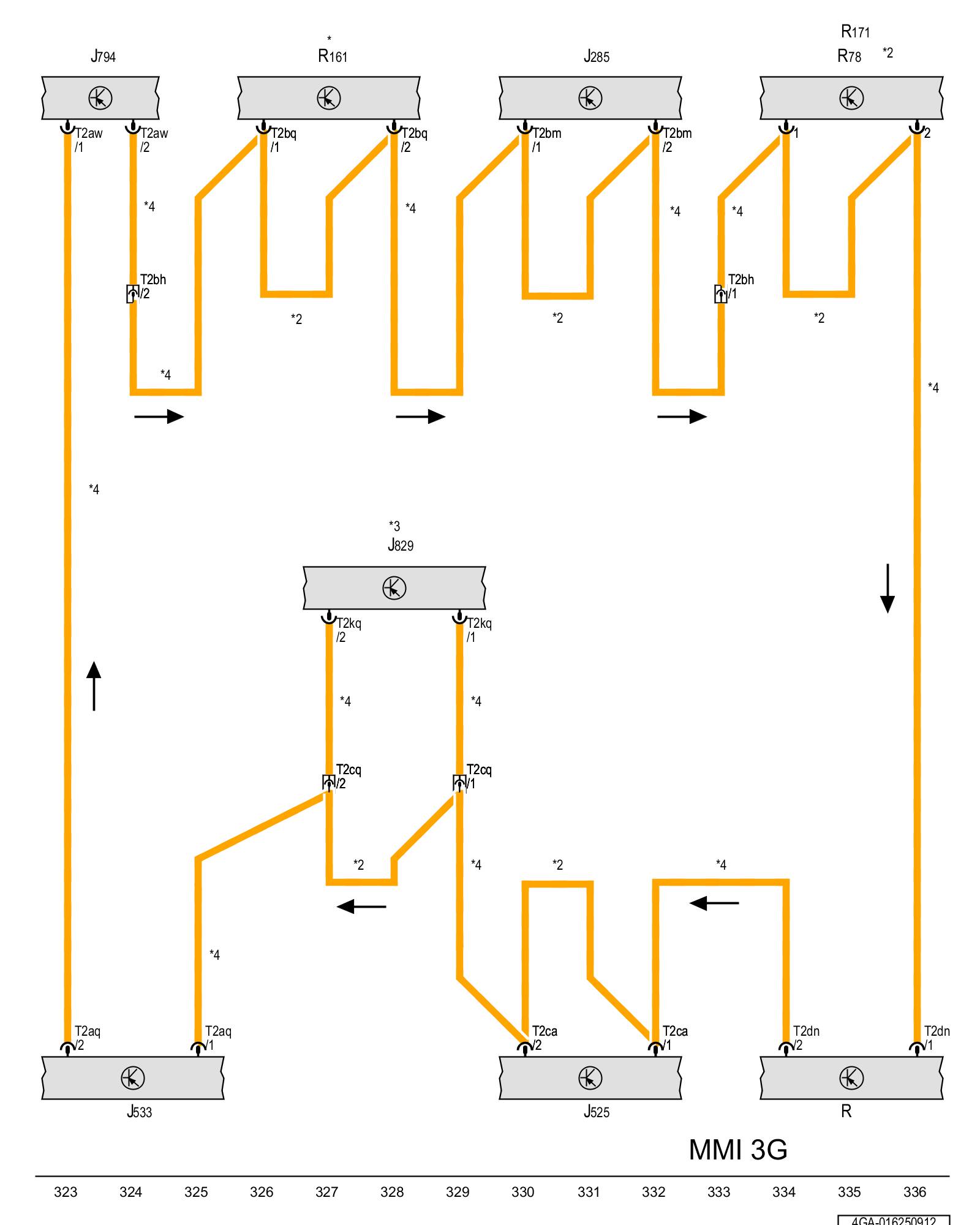

Diagram 16/25 (Tracks 323-336)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Locations

J525 - Digital sound system control module Sound System Control Module Overview

J533 - Data bus on board diagnostic interface Locations

J794 - Information electronics control module 1 Locations

J829 - Information electronics control module 2

R - Radio

R78 - TV tuner

R161 - DVD changer

R171 - Digital TV tuner

T2aq - Double connector Locations

T2aw - Double connector

T2bh - Double connector, Relay carrier under the instrument panel, left Locations

T2bm - Double connector

T2bq - Double connector

T2ca - Double connector

T2cq - Double connector

T2dn - Double connector

T2kq - Double connector

* - Only for vehicles with DVD player

*2 - Depending on equipment

*3 - Only for vehicles with Rear Seat Entertainment (RSE)

*4 - Fiber optic cable

Previous Diagram 16/24 (Tracks 309-322)
