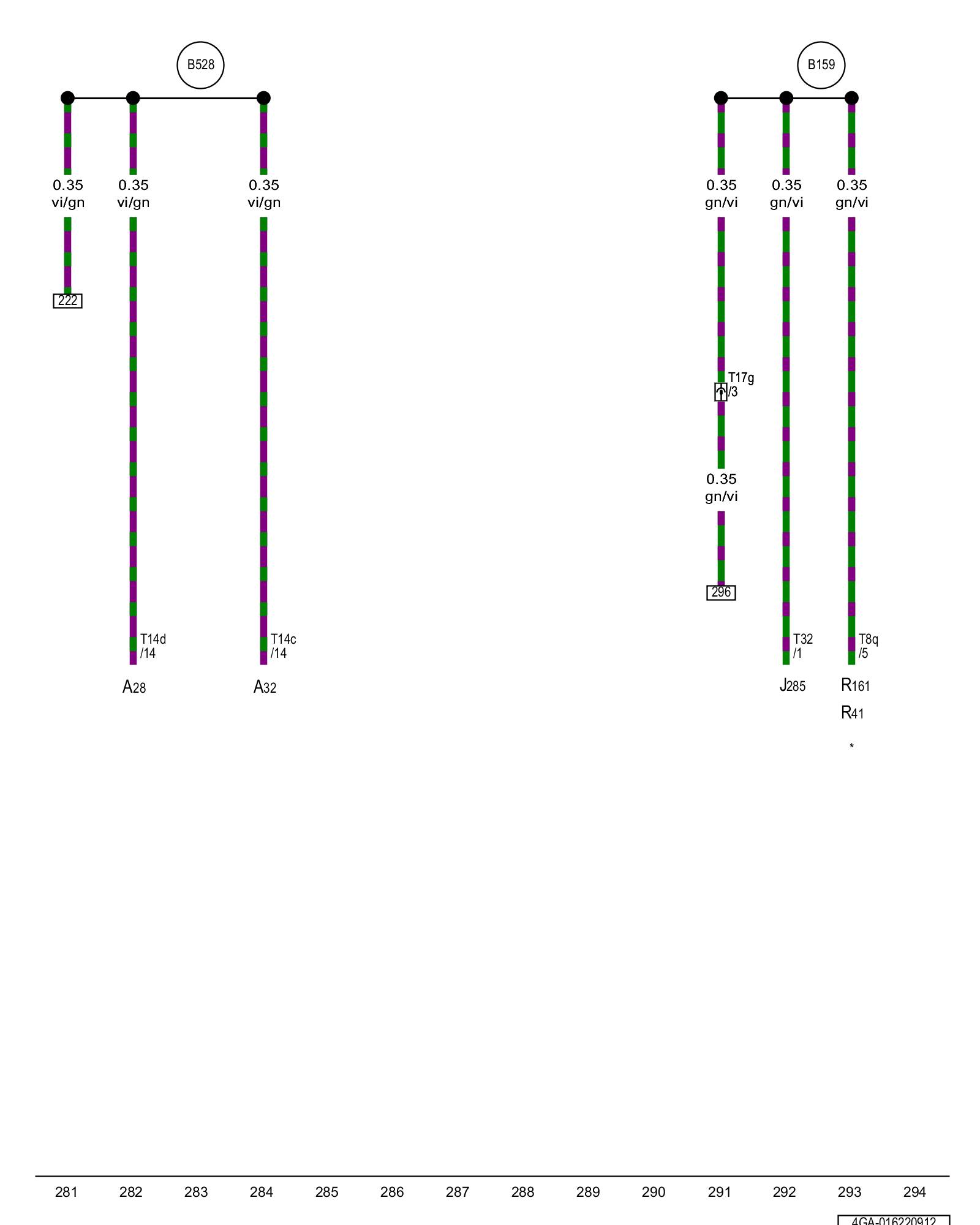

Diagram 16/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Diagnostic connection (in interior wiring harness), LIN bus connection 1 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A28 - Right LED headlamp power output module 2

A32 - Left LED headlamp power output module 2

J285 - Instrument cluster control module Locations

R41 - CD changer Locations

R161 - DVD changer

T8q - 8-pin connector

T14c - 14-pin connector

T14d - 14-pin connector

T17g - 17-pin connector, in the left A-pillar connector station Locations

T32 - 32-pin connector

(B159) - Diagnostic connection (in interior wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)

* - Depending on equipment
