Diagram 16/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

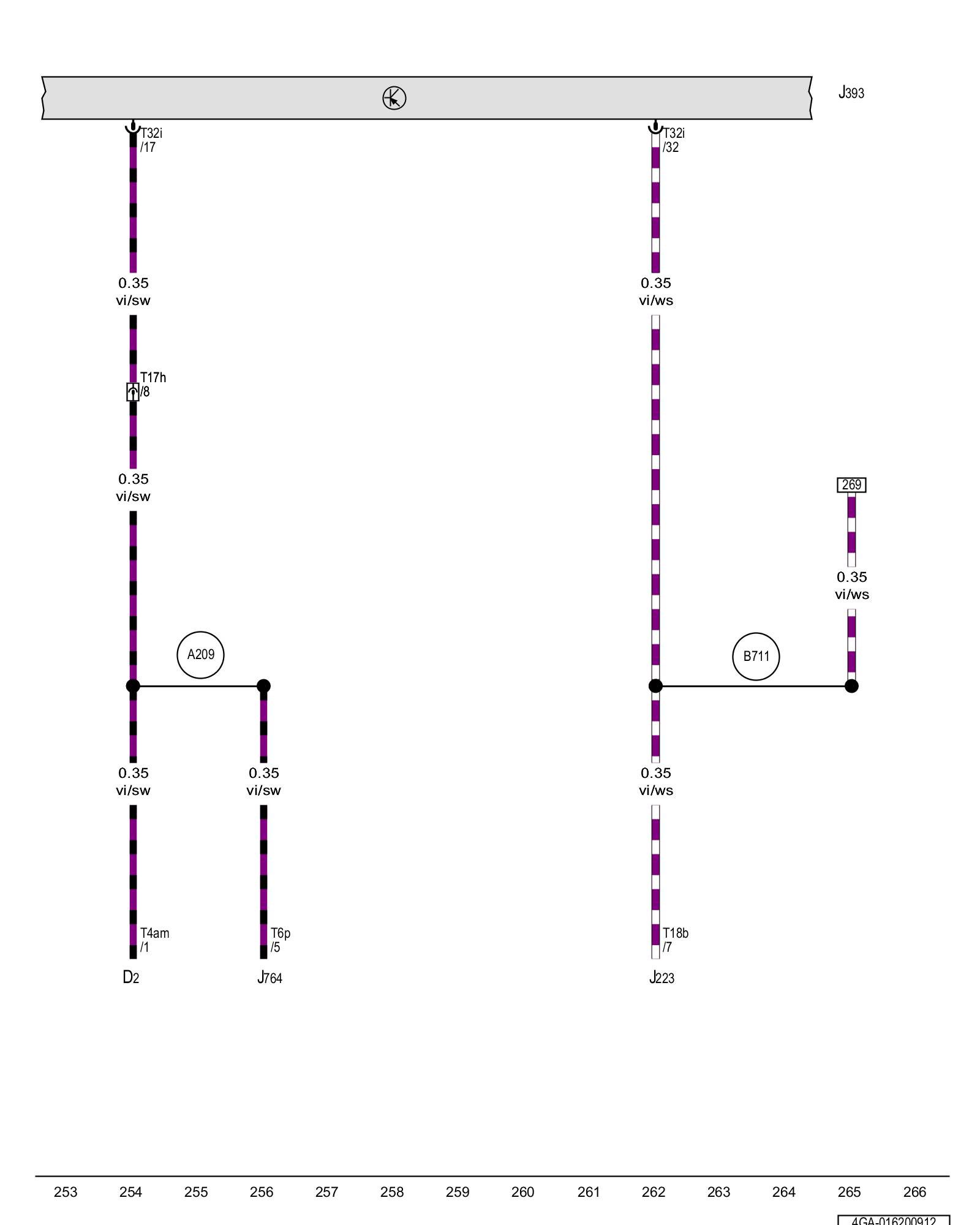

LIN bus connection 1 (in instrument panel wiring harness), LIN bus connection 6 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D2 - Anti-theft immobilizer reader coil

J223 - Rear spoiler control module Locations

J393 - Comfort system central control module Locations

J764 - Electronic steering column lock control module Keyless Entry System - front

T4am - 4-pin connector

T6p - 6-pin connector Locations

T17h - 17-pin connector, in the left A-pillar connector station Locations

T18b - 18-pin connector Locations

T32i - 32-pin connector Locations

(A209) - LIN bus connection 1 (in instrument panel wiring harness)

(B711) - LIN bus connection 6 (in main wiring harness)

Previous Diagram 16/19 (Tracks 239-252)

Next Diagram 16/21 (Tracks 267-280)
