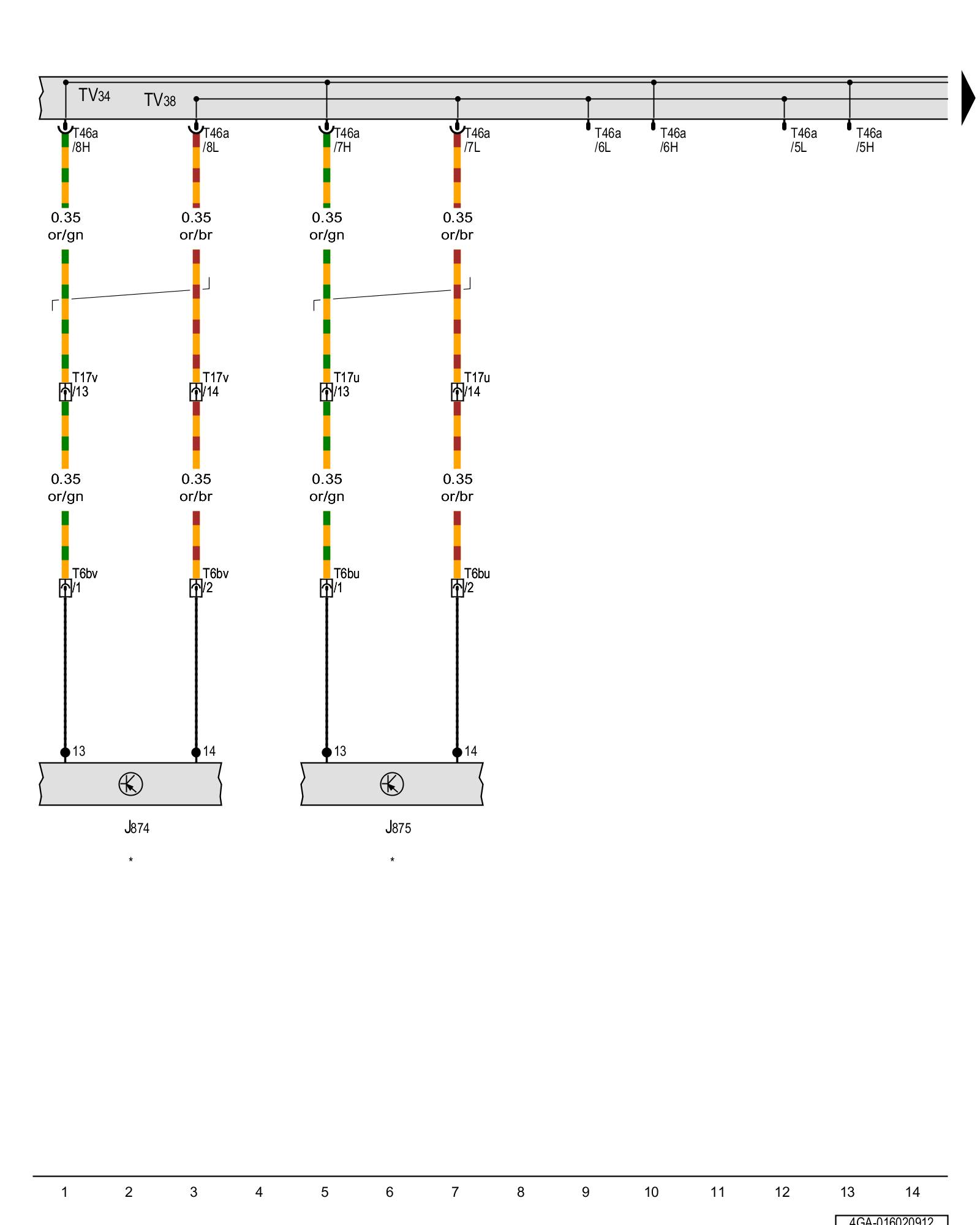

Diagram 16/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Comfort system CAN bus high wire junction, Comfort system CAN bus low wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J874 - Passenger side rear multicontour seat control module

J875 - Driver side rear multicontour seat control module

T6bu - 6-pin connector, under the left rear seat

T6bv - 6-pin connector, under the right rear seat

T17u - 17-pin connector, under the left rear seat

T17v - 17-pin connector, under the right rear seat

T46a - 46-pin connector Locations

TV34 - Comfort system CAN bus high wire junction, in the left A-pillar connector station

TV38 - Comfort system CAN bus low wire junction

* - Only for vehicles with a long wheelbase

Next Diagram 16/3 (Tracks 15-28)
