Diagram 16/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

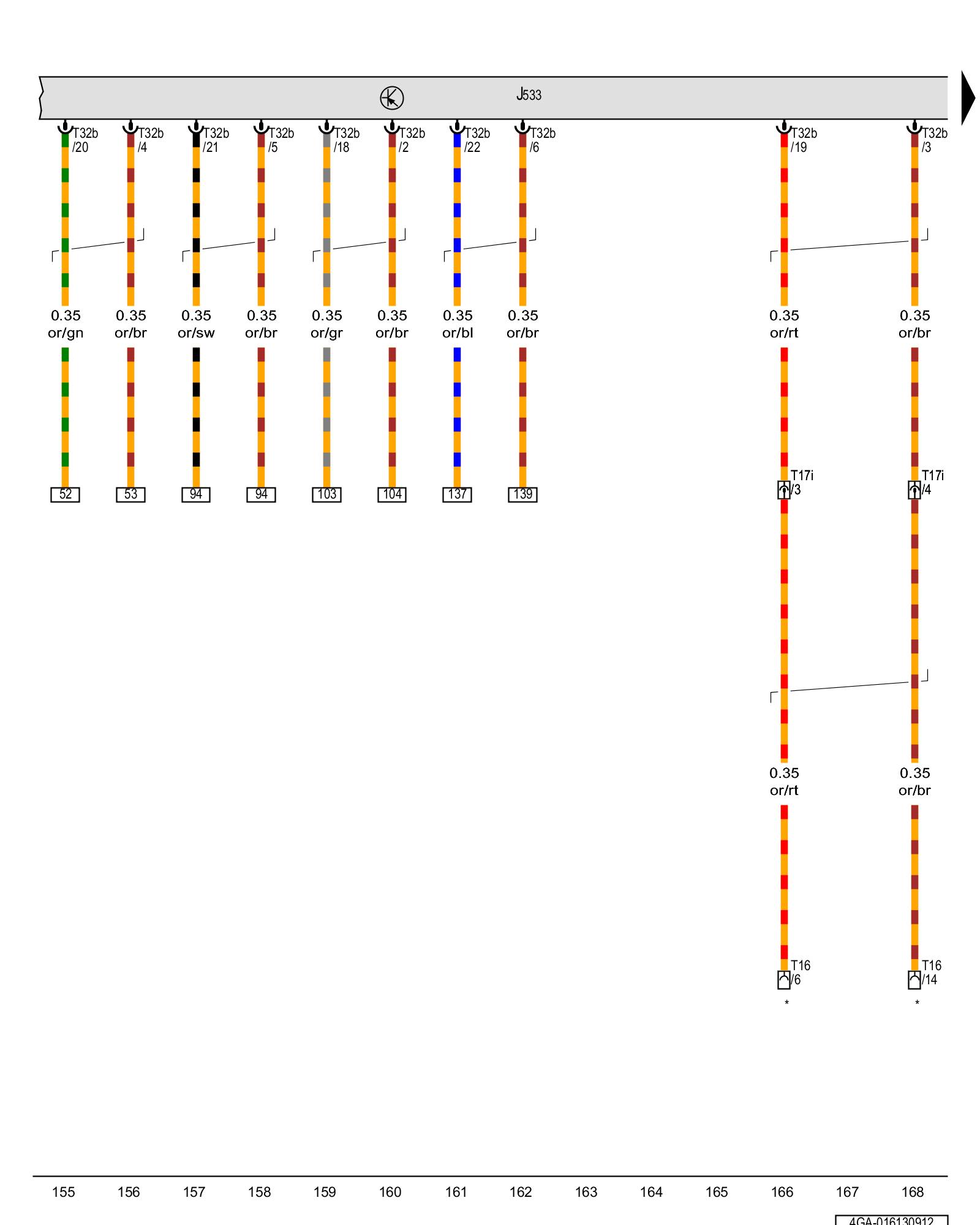

Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J533 - Data bus on board diagnostic interface Locations

T16 - 16-pin connector Locations

T17i - 17-pin connector, in the left A-pillar connector station Locations

T32b - 32-pin connector Locations

* - Diagnostic connector

Previous Diagram 16/12 (Tracks 141-154)

Next Diagram 16/14 (Tracks 169-182)
